Product Details:
Payment & Shipping Terms:
|
Tunnel Size: | 800*650mm | Penetration: | 30 To 32mm Steel |
---|---|---|---|
Film Leakage: | Guarantee ISO 1600 Film | X-ray Leakage: | <0.5μSv/h (at A Distance Of 5cm From External Housing) |
Conveyor Speed: | 0.22m/s | Conveyor Max Load: | 200kgs |
Software Interface: | Support Multi-language | Wire Resolution: | 32-38AWG |
Spatial Resolution: | Horizontal:1.3 Or 1.0mm, Vertical: 1.3 Or 1.0mm | Pass Rate: | 720 Bag/h |
High Light: | airport screening machines,security screening equipment |

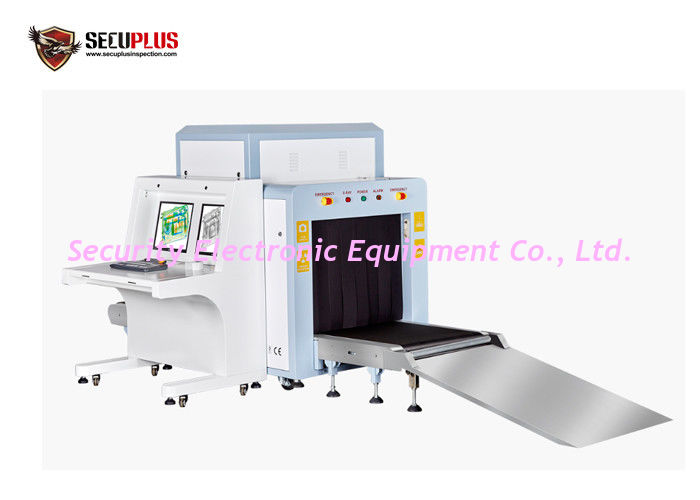

Steel Penetration 32mm Guaranteed Security X Ray Baggage Scanner

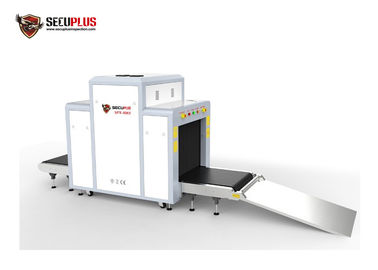

Model: SPX-8065
Advantage:

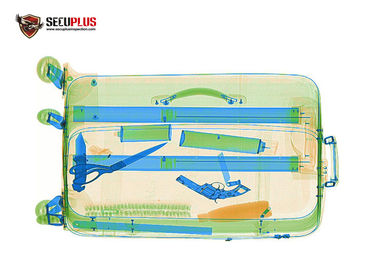

Assist of detecting organic and inorganic items such as
weapons, explosives and narcotics using different color show
Quick Details
General Specification:
Tunnel Size: | 800(W)*650(H)mm |
Conveyor Speed: | 0.22m/s |
Conveyor Max Load: | 200kg |
Wire Resolution: | 32AWG to 38AWG |
Spatial resolution: | horizontal:1.3 or 1.0mm, vertical: 1.3 or 1.0mm |
Penetration: | 30 to 32mm Steel |
Film Safety: | Guarantee ISO1600 Film |
X-ray Leakage: | <0.5 μSv/h (at a distance of 5cm from external housing) |
Pass rate: | 720 bags per hour |
Installation Data:
Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
Operation Power: | 220VAC(±10%)50±3Hz |
Power Consumption: | 1.0 KW (max), 0.7KW(working) |
Noise: | <58db |
X-ray Generator:
Beam direction: | Diagonal |
Generate angle: | 80 degree |
Anode Voltage: | 140Kv |
Anode power: | 0.35mA |
Cooling / Duty Cycle: | Oil Cooling /100% |
Image System:
X-ray Sensor: | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
Monitor: | High Resolution Color, LCD Accord, 19 inch |
Image Processing: | Edge enhancement, image strengthening, image lightening,, reducing darkening, image returning,image retrieval. |
Image Grey Level: | 4096 |
Image Processing: | 24bit for processing real time |
Image storage: | Storage 60000 pictures in real time |
Zoom: | max 16 Times Enlarge, Whole screen continuous observation |
