Product Details:

Place of Origin: China
Brand Name: SECU PLUS
Certification: CE, ISO
Model Number: SPX-100100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD17000-USD19500
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 1000(W)*1000(H)mm Waranty: One Year Free Spare Parts, Life Technic Support
Penetration: 34mm Steel Software Interface: Support Multi Language
Tube Voltage: 160kv Conveyor Max Weight: 200kg
Training: Free Training In The Factory Installation: Very Easy
Operatoin: User Maual Attached With Machine OEM/ODM: Accepted

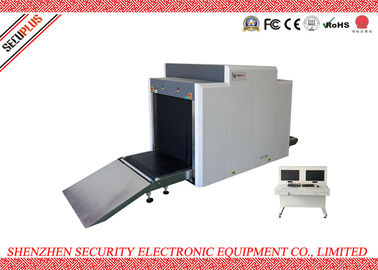

Airport Use Large Size X Ray Baggage Scanner With 38mm Penetration
Model: SPX-100100

Specification


                       Contents

                       Index

Technical Data

Model Name: SPX-100100

Tunnel Size: W1000*H1000mm

Conveyor Speed: 0.22m/s

Conveyor Max Load: 200 kg

Single Inspection Dosage: < =0.1µ GY

Resolution: 0.087mm metal line

Steel Penetration: typical 40mm steel

Film Safety: For ISO 1600

Maximum leakage radiation: <0.05µ GY/H

X-ray Generator

Orientation: Vertically Upward

Tube Current: 0.4~1.2MA(adjustable)

Anode Voltage: 140kv

Angle: 80°

Operating Environment

Storage Temperature: -20ºC to 60ºC

Operating Temperature: 0ºC to 45ºC

Relative Humidity: 20 -90%non-condensing

System Power:  220 VAC(±10%) 50±3HZ

Power wastage:  1.0KW (Max)

Noise:   <55DB

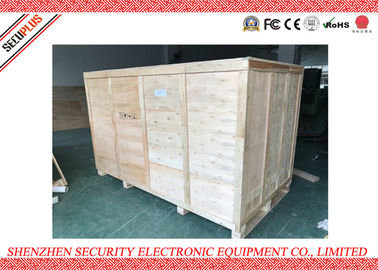

 Packing and Shipment:



Packing details

carton packing

1 set/ctn

Packing Size: (L)1850*(W)830*(H)1500mm

Gross Weight:500kg

Payment terms

T/T, Western Union, Cash,L/C

Shipping methods

By air   (5-7days, most expensive)

By express (3-7days, more expensive)

By sea    (15-28days, cheapest)





Company profile:

Rose,from Security Electronic Equipment Co.,Ltd(SEE) .

The biggest manufacturer of threats detecting device in South of China.
With professional R&D engineer team are specialized in:
  • Under vehicle inspection system(new)-mirror & camera
  • Explosive and Drug trace detection(new)
  • Dangerous liquid scanner(new)
  • X-ray screening system for baggage
  • Walk through metal detectors
  • Hand held metal detector
Quotation will send you by your inquiry ASAP
