Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner

Good quality Baggage And Parcel Inspection for sales
Good quality Baggage And Parcel Inspection for sales
I'm Online Chat Now

Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner

China Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner supplier
Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner supplier Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner supplier Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner supplier Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner supplier

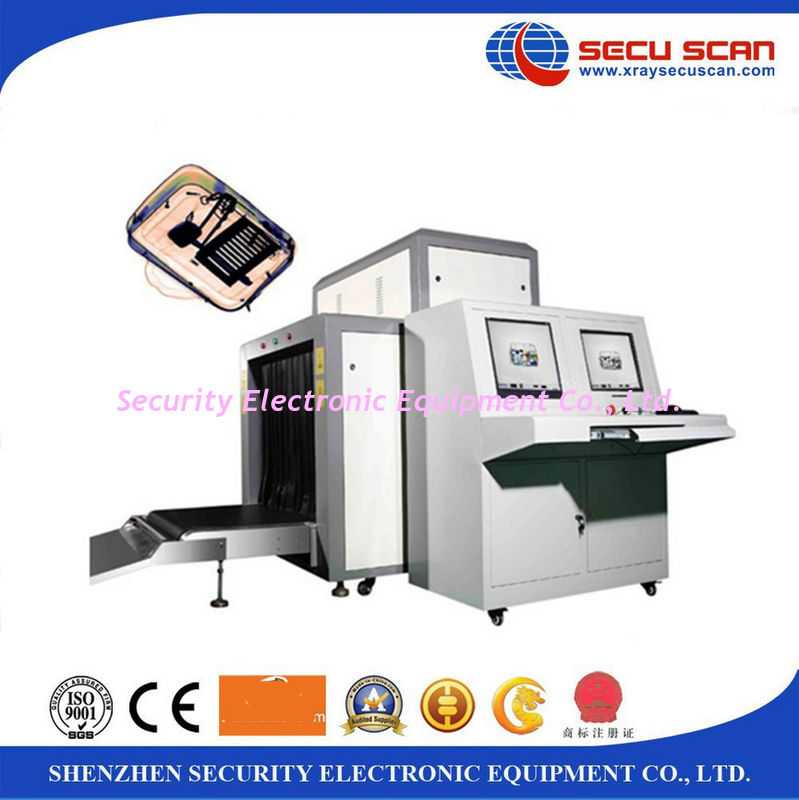

Large Image :  Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO9001, US.FDA
Model Number: AT100100

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1000~50000 per unit
Packaging Details: Wooden box
Delivery Time: 7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 1000 sets/month
Contact Now
Detailed Product Description
Material: Stainless Steel Frame Tunnel Size: 1000*1000mm
Conveyor Load: 200kg Image Processing: B/W, Color
Alert: Visual Alert To Suspicous Display: Double 17'' Monitors
Computer System: Windows XP Software: Password Protection
Warranty: 18 Months Technical Training: Free



Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner

Specifications:



Tunnel Size:

1000(W)*1000(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.1μGy/h (at a distance of 5cm From external housing)

Generate direct:

downward

Generate angle:

80 degree

Anode Voltage:

100-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,
reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,  Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

187~240VAC, 50/60Hz

Power Consumption:

0.8KW(working)

Noise:

<58db


Applications:
01. Airports, 02. Transport terminals,  03. Buildings,
04. Factories (to find needle in clothing,  shoes,  bags),
05. Courthouses, 06. Embassies, 07. Military installations,
08. Prisons, 09. Hotels, 10. Schools ,
11. Convention centers, 12. Security checkpoints
13. Special events location


Competitive Advantage:
1. Integrated,  cost Effective,  Turn-Key Security
2. Fit for small Baggage and Parcel Security Inspection.
3. Increased detection capability
4. Friendly interface for ease-of-use
5. Reliable performance and uncompromising value


Dual View Luggage X Ray Machine Tv Station Airport X Ray Scanner
