Home ProductsLuggage X Ray Machines

Middle size High penetration Luggage X Ray Machines for airport and metro use

Good quality Baggage And Parcel Inspection for sales
Good quality Baggage And Parcel Inspection for sales
I'm Online Chat Now

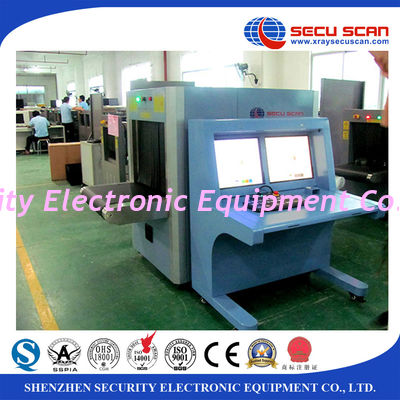

Middle size High penetration Luggage X Ray Machines for airport and metro use

China Middle size High penetration Luggage X Ray Machines for airport and metro use supplier
Middle size High penetration Luggage X Ray Machines for airport and metro use supplier Middle size High penetration Luggage X Ray Machines for airport and metro use supplier Middle size High penetration Luggage X Ray Machines for airport and metro use supplier Middle size High penetration Luggage X Ray Machines for airport and metro use supplier Middle size High penetration Luggage X Ray Machines for airport and metro use supplier

Large Image :  Middle size High penetration Luggage X Ray Machines for airport and metro use

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT6550

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD+1-50000/set
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 650*500mm Conveyor Height: 628mm
Conveyor Speed: 0.22 M/s Conveyor Max Load: 170KG
Dimention: 2190*878*1280mm Penetration: 34-38mm
Penetration Resolution: 34mm Generator: 100-160kv Adjustable

Middle size High penetration Luggage X Ray Machines for airport and metro use

Model: AT-6550



SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.



Competitive Advantage:



Integrated,  cost Effective,  Turn-Key Security

Fit for small Baggage and Parcel Security Inspection.

Increased detection capability

Friendly interface for ease-of-use

Reliable performance and uncompromising value



Specifications:



Tunnel Size:

650(W)*500(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

150kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

80 degree

Anode Voltage:

140-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 100000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16,64 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.1 KW (max),  0.35KW(working)

Noise:

<58db



Applications:

Airports,

Transport terminals,

Buildings,

Factories (to find needle in clothing,  shoes,  bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location

Middle size High penetration Luggage X Ray Machines for airport and metro use

Middle size High penetration Luggage X Ray Machines for airport and metro use

Middle size High penetration Luggage X Ray Machines for airport and metro use

Middle size High penetration Luggage X Ray Machines for airport and metro use
