High Sensitivity Station X Ray Baggage Scanner at airport security

China High Sensitivity Station X Ray Baggage Scanner at airport security supplier
High Sensitivity Station X Ray Baggage Scanner at airport security supplier High Sensitivity Station X Ray Baggage Scanner at airport security supplier High Sensitivity Station X Ray Baggage Scanner at airport security supplier High Sensitivity Station X Ray Baggage Scanner at airport security supplier High Sensitivity Station X Ray Baggage Scanner at airport security supplier

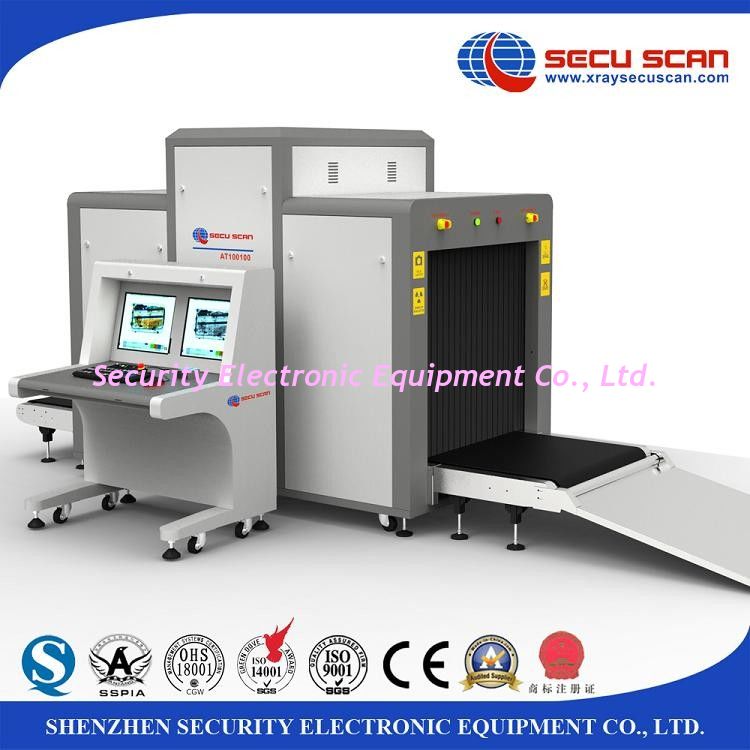

Large Image :  High Sensitivity Station X Ray Baggage Scanner at airport security

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT100100
Port: Shenzhen
ODM: ODM takes more time
Brand: OEM accepted
Warranty: one year free spare parts

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 1000*1000mm Generate Angle: 80 Degree
Anode Voltage: 100-160 Kv Adjustable Penetration: 28-34mm Steel
Wire Resolution: 32AWG To 38 AWG Conveyor Max Load: 200kg
Pass Rate: 720bags Per Hour

High Sensitivity Station X Ray Baggage Scanner at airport security





Model: AT100100



Specifications:

Tunnel Size:

1000(W)*1000(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Dose per Inspection:

<1.7μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.1μGy/h (at a distance of 5cm From external housing)

Generate direct:

downward

Generate angle:

80 degree

Anode Voltage:

100-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.8 KW (max),  0.3KW(working)

Noise:

<58db



Applications:
01. Airports,
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing,  shoes,  bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08.
Prisons,
09. Hotels,
10. Schools ,
11.
Convention centers,
12. Security checkpoints
13.
Special events location

Competitive Advantage:
1.
Integrated,  cost Effective,  Turn-Key Security
2.
Fit for small Baggage and Parcel Security Inspection.
3.
Increased detection capability
4.
Friendly interface for ease-of-use
5.
Reliable performance and uncompromising value


Detailed Product Description:
SECU SCAN X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on. Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT6550 easily accommodates the inspection of small baggage and parcels. SECU SCAN X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad. SECU SCAN branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.

As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD is an ISO 9001:2008, ISO14001:2004   and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.

SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.





High Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport security

High Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport security

High Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport security

High Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport securityHigh Sensitivity Station X Ray Baggage Scanner at airport security






Tag : X-ray baggage scanning , X-ray baggage inspection system
