Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed

China Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed supplier
Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed supplier Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed supplier Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed supplier

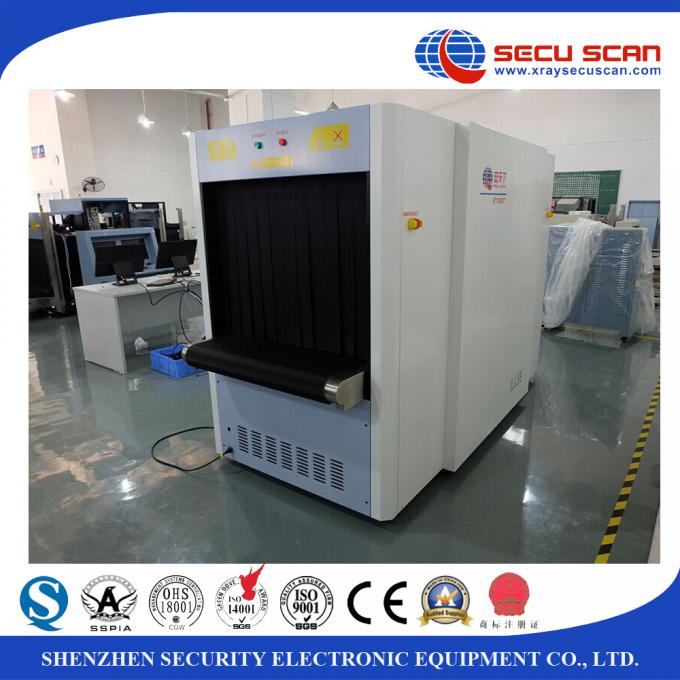

Large Image :  Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed

Product Details:

Place of Origin: China
Brand Name: SECU SCAN
Certification: ISO
Model Number: AT-10080T

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: negotiable
Packaging Details: wooden package
Delivery Time: one week when in stock, one month no stock
Contact Now
Detailed Product Description
Warranty: One Year And Life Time Technical Support Conveyor Speed: 0.5m/s
X-ray Generator: Three From Different Angles Penetration: 34mm
Tunnel Size: 1000*800mm Monitor: Three
Installation: With Instruction Manual, Very Simple Delivery: One Month
Trainning: Free Of Cost At The Factory



Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed



Model: AT-10080T



Advantages:



1. Multi-view x-ray baggage scanner, three generators in different angles, less dead angle.

2. High conveyor speed, two or three tims faster than single-view scanner

3. Perfect scanning effect, suitable for higher standard of logistics,customs,airport



X-ray Generator:

  •  Generate quantity: 3 pieces of generator in difference direction.
  •  Beam direction : vertical, horizontal, oblique
  •  Anode Voltage: 100~160Kv
  •  Anode power: 0.4 to 1.2mA
  •  Cooling / Duty Cycle: Oil Cooling /100

Operating Environment:

  •  Operation temperature/Humidity: 0℃ to 40℃/10%-90%(non-condensing)
  •  Storage Temperature/Humidity: -20℃ to 60℃/10%-90%(non-condensing)
  •  Operation Power: 220VAC(±10%)50±3Hz
  •  Power Consumption: <3KVA
  •  Noise: <58db
  •  Input / output extension Roller



General Specification :

  •  Tunnel Size: 1070(W)*810(H)mm
  •  Conveyor Speed: 0.50m/s
  •  Conveyor height : 800mm
  •  Conveyor Max Load: 200kg (75kg/m²)
  •  Dose per Inspection<14µSv per inspection
  •  Resolution: 38AWG
  •  Spatial resolution: Level: dia1.3mm, Vertical: dia1.0mm
  •  Penetrate resolution: 24WG to 34AWG
  •  Penetration: 38mm Steel
  •  Film Safety: Guarantee ISO1600 Film(33 DIN)
  •  X-ray Leakage < µSv /h at the distance of 5 cm 2” from external housing
  •  Operation Cycle: 100%,[start –up time about 1-2 for boot procedure and self-tests]
  •  Throughput : Typically 2000 to 2300items/h
  •  Data recording mediums : No damage to computer memories, such as cassettes, floppy disks or hard disks due to x-rays.
  •  X-ray Sensor: L-Shaped  Photodiode Array (multi-energetic), 12bit Deep
  •  Monitor: High Resolution Color, LCD Accord, 17inch



Software System:

  •  Image Processing: Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval.
  •  Threat Image Projection software
  •  Screeners assist Threat Detection System.
  •  Remote workstations
  •  Supervisor workstation
  •  Automated explosive threat detection system
  • I mage Grey Level: 4096
  • I  mage Max Resolution: 1024 * 1280 pixel
  •  Image Processing: 24bit for processing real time
  •  Image storage: Storage 60000 pictures in real time
  •  Zoom: 64 Times Enlarge, Whole screen continuous observation
  •  Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green
  •  Automatic explosive detection system, by means of high performance parallel computing

Multi View Big Size Airport Security X Ray Scanner 0.5m / S Speed
