Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

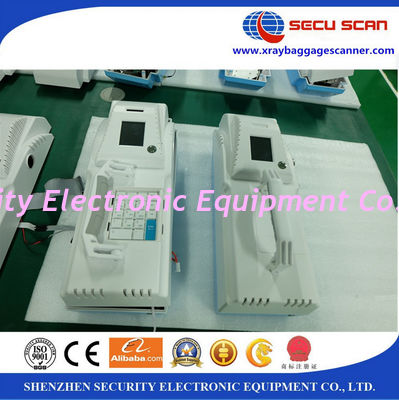

Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security

Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security
Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security

Large Image :  Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security

Product Details:
Place of Origin: CHINA
Brand Name: SECUSCAN
Certification: ISO9001, CE, China Police Test Department Approved
Model Number: HD300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: wooden pallet
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Supply Ability: 100 sets per month
Detailed Product Description
Picking Method: Vapor And Partical Sensitivity: 1 Nanogram
Analyzing Time: 5s Warming-up Time: 20 Minutes
False Alarm: ≤ 1% Display: TFT Touch Screen
Weight: 4.3kg Technical Training: Free
Software: Multi-language
High Light:

portable bomb detector

,

detection equipment

Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security



Hightlight Advantages:



1.  High sensitivity: Can detect at least 100 Nanogram black powder, including fireworks and civil homemade explosives

2.  High speed Indentify, less than 5 seconds get the result

3.  VUV lamp soft ionization technique , non-radioactive

4.   Advanced migration tube design ensures high resolution

5.   Automatic cleaning system can prevent inject pollution

6.   Operating parameters real-time display to supervise the device running status

7.   Renewable gas purifiction system

8.   Database open to user, can add new type explosive

9.    2.8 inch TFT touch screen

10.   Unlimited Storage, USB port to ouput data



Applications:



Airport, Train Station, Coach Station,etc

Public Safety

Special events for protection

Defense Security Service



General Specification:



Technology

High-Resolution PIMS

Detectable types

Exploder: All military, commercial and improvised explosives, such as

Black Powder, AN, TNT, DNT, Tetryl, PETN, Gun Power, NG explosive,

RDX, Semtex explosive, C4 etc.

New type of samples can be added according to the detection requirement.

Picking method

Test paper wipe picking

Sensitivity

NG(nanogram) level

Alarming pattern

Audio message + screen information

Analyzing time

≤ 5s

Warming-up time

Less than 20 min

Rate of false alarm

≤ 1%

Detectable rate

≥ 99%

Working condition

-10°C ~ 55°C  Relative humidity 45% ~ 85%

Power supply

220V/AC 50-60Hz and lithium battery power supply

Power supply adapter

Input: 220V/AC 50-60Hz; Output:19V/DC

Battery parameter

Lithium battery: 14.8V/ 4400mAh. Continuous power supply: Not less than 2h.

Overall dimension

470 (L) x 170 (W) x 165 (H) mm

Weight of detector

4.3 Kg






Our Services
  1. Professional reply for your question in time before -sales during Monday to Friday 24 hours.
  2. All of our product already get pass the aging test, to ensure reliability of using.
  3. Quality inspection department will check the machine again before packing
  4. One years spare parts in free for replacing the broken after delivery .
  5. Remote control the machine for diagnosing
  6. Technic support by video and telephone
  7. Accept your engineer come to our factory for training in free
  8. Send engineer to your country with additional cost

FAQ



 Why join SECU SCAN?

  1. Factory price directly without any middle profit
  2. Stric quality control management
  3. Support local agent and service
  4. Project manufacturer authorization letter for you
  5. Expending after sales service with charge

Packing ways :

Real Time Portable Explosives And Narcotics Detection For Checkpoint And Transportation Security 0
