High resolution Baggage Screening Equipment / baggage x ray scanner

China High resolution Baggage Screening Equipment / baggage x ray scanner supplier

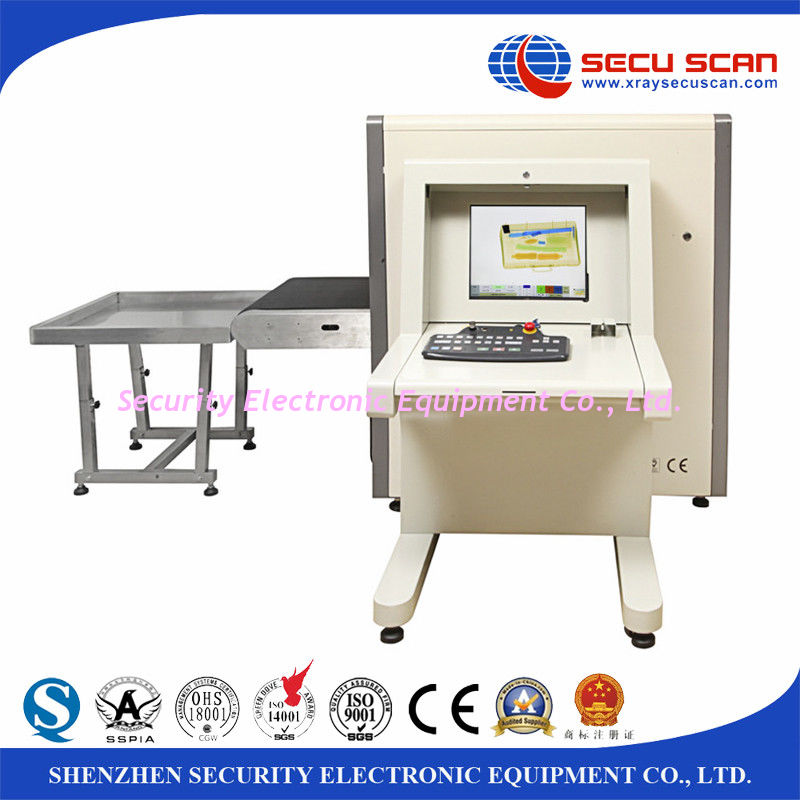

Large Image :  High resolution Baggage Screening Equipment / baggage x ray scanner

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT6550

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Generator Voltage: 100-160kv Generator Angle: 80 Degree
Conveyor Max Load: 170kgs Wire Resolution: 40AWG
Film Safety: Guarantee ISO 1600 Film Pass Rate: 720 Bags Per Hour

High resolution Baggage Screening Equipment / baggage x ray scanner





Model: AT-6550



Specifications:



Tunnel Size:

650(W)*500(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

170kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

80 degree

Anode Voltage:

100-150Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.1 KW (max),  0.3KW(working)

Noise:

<58db





Applications:

  • Airports,
  • Transport terminals,
  • Buildings,
  • Factories (to find needle in clothing,  shoes,  bags),
  • Courthouses,
  • Embassies,
  • Military installations,
  • Prisons,
  • Hotels,
  • Schools ,
  • Convention centers,
  • Security checkpoints,
  • Special events location



Competitive Advantage:

  • Reliable performance and life time technical support
  • Fit for Middle size Baggage and Parcel Security Inspection.
  • Free tranning and commissioning
  • Friendly interface for ease-of-use
  • One-key switch off, high peneration and penerate resolution
