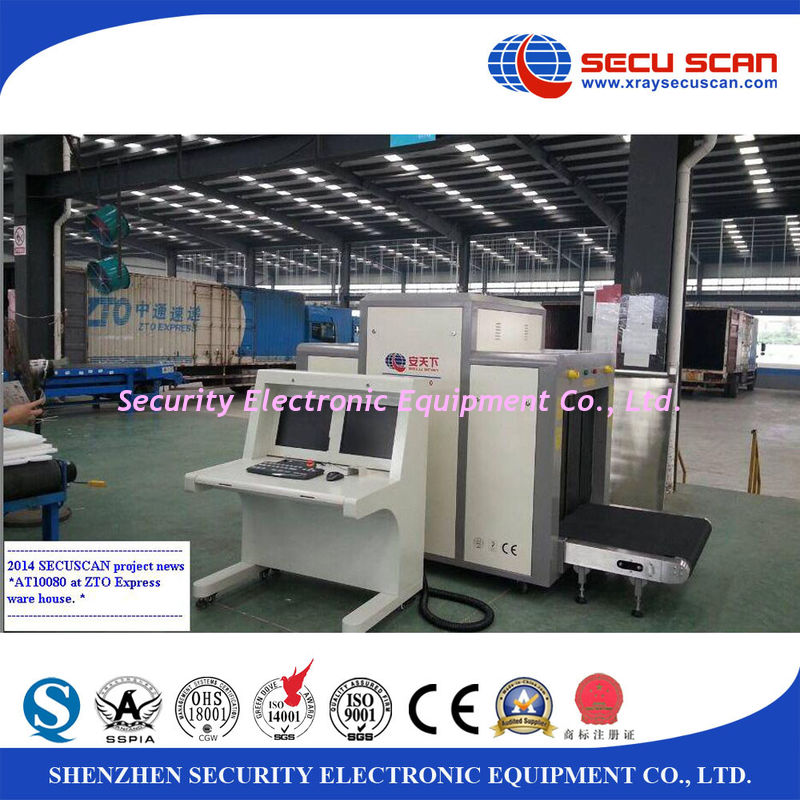

Large Image :  160KV Cargo Screening System , x-ray inspection system High Resolution

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT10080

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD+1-88888+unit
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description
Tunnel Size: 1000mm(W)*800mm(H) Resolution: 38AWG Guarantee, 40 AWG Typical
Tube Current: 0.7mA Tube Voltage: 160KV
Conveyor Max Load: 200KG Power Supply: 220V 50Hz

160KV Cargo Screening System , x-ray inspection system High Resolution





From professional and biggest manufacturer in south of China

We have more different size x-ray baggage scanner for your optional





Specifications-AT10080:



Tunnel Size:

1000(W)*800(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

200kgs

Dose per Inspection:

<1.7 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.1μGy/h (at a distance of 5cm From external housing)

Generate direct:

downward

Generate angle:

80 degree

Anode Voltage:

100-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.5KW (max),  0.3KW(working)

Noise:

<58db



SEE(Security Electronic Equipment Co., Limited) is a national high-tech enterprises,

the company is committed to security equipment research and development, production and sales , as customers in different industries to provide personalized security system solutions.



Through nearly a decade of continuous development has been in the security equipment manufacturing industry to rise rapidly and become a leader in the security detection industry.



SEE is a high-tech company integrating R&D, manufacturing, engineering, training and services. We run SECU SCAN as the top brand. As a reliable supplier, we continue produce good quality products, give professional technical support.
