Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner

Good quality Baggage And Parcel Inspection for sales
Good quality Baggage And Parcel Inspection for sales
I'm Online Chat Now

Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner

China Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner supplier

Large Image :  Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT100100
Brand: OEM accepted
ODM: ODM takes more time
Port: Shenzhen
Warranty: one year free spare parts
Training and Installation: China or local support

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Contact Now
Detailed Product Description


Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner




x - ray Baggage Scanner model:AT100100

General Specification---

Tunnel Size: 1000(W)*1000(H)mm
Conveyor Speed: 0.22m/s
Conveyor Max Load: 200kg
Wire Resolution: 32AWG to 38 AWG
Spatial resolution: horizontal:1.3 or 1.0mm , vertical: 1.3 or 1.0mm
Penetration: 28 to 34 mm Steel
Film Safety: Guarantee ISO1600 Film
X-ray Leakage: <1 μSv/h (at a distance of 5cm from external housing)
Pass rate: 720 bags per hour




X - ray Generator---


Beam direction: Diagonal
Generate angle: 80 degree
Anode Voltage: 100Kv to 160Kv adjustable
Anode power: 0.4 to 0.5mA
Cooling / Duty Cycle: Oil Cooling /100%



Installation Data ---


Operation temperature/Humidity: 0℃-45℃/20%-95%(non-condensing)
Storage Temperature/Humidity: -20℃-60℃/20%-95%(non-condensing)
Operation Power: 220VAC(±10%)50±3Hz
Power Consumption: 1.3 KW (max), 1KW(working)
Noise: <58db



Image System ---


X-ray Sensor: L-Shaped Photodiode Array(multi-energetic) , 12bit Deep
Monitor: High Resolution Color, LCD Accord , 19 inch
Image Processing: Edge enhancement, imagestrengthening, image lightening,reducing darkening,image returning, image retrieval.
Image Processing: 24bit for processing real time
Image Grey Level: 4096
Image storage: Storage 60000 pictures in real time
Zoom: max 16 Times Enlarge, Whole screen continuous observation



Functions:

Assist of detecting organic and inorganic items such as weapons,
explosives and narcotics using different colour show



Applications:

Airports,
Transport terminals,
Buildings,
Factories (to find needle in clothing, shoes, bags),
Courthouses,
Embassies,
Military installations,

Prisons,
Hotels,
Schools ,

Convention centers,
Security checkpoints,

Special events location


Competitive Advantage:

Integrated, cost Effective, Turn-Key Security
Fit for small Baggage and Parcel Security Inspection.
Increased detection capability
Friendly interface for ease-of-use
Reliable performance and uncompromising value


Detailed Product Description

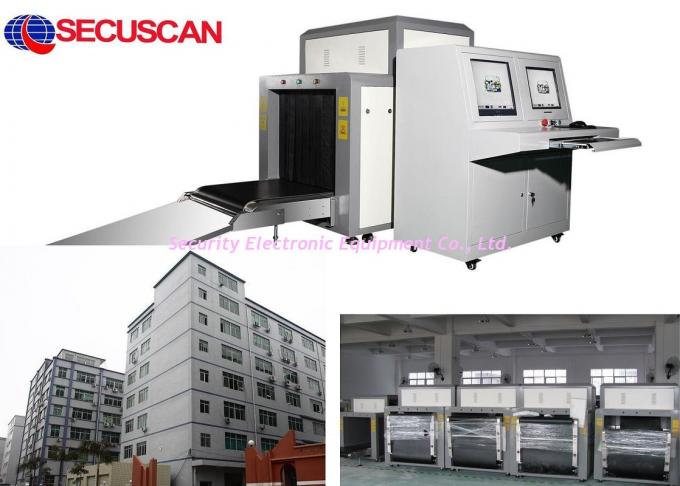

SECU SCAN X RAY SYSTEM offers a modern technology to secure entry checkpoints for important locations like airports, transport terminals, buildings, and so on. Our systems screen baggage and parcel, to detect contraband, weapons, dangerous and illegal items. Model AT6550 easily accommodates the inspection of small baggage and parcels. SECU SCAN X RAY SYSTEM is based on user-friendly design with ergonomic operator control panel and adjustable control panel stand. It is easy to installation and maintenance. Over 100 systems per month installed in china and abroad. SECU SCAN branded products received certifications of CE, Test report from China Ministry of Public Security and Copyright for image Operation software SPHOTO.
As a manufacturer SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LTD is an ISO 9001:2008, ISO14001:2004 and OHSMS18001 GB/T 28001-2001 (Occupational Health and Safety Management System) certified company. We have Radiation Safety license from China Environmental Protection Administration.
SECU SCAN X RAY SYSTEM is a professional security solution provider, a wise choice to governments and partners.


 Security Luggage X Ray Machines , exhibition hall x-ray baggage scanner
