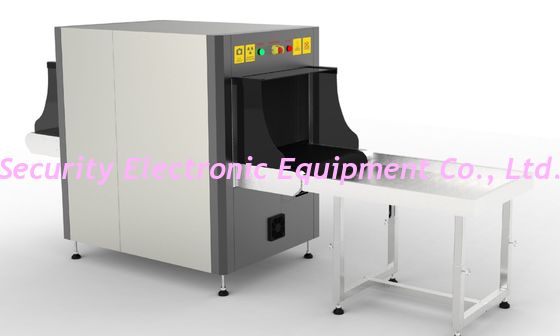

Baggage X-ray Screening Scanner with High Resolution For Banks

Baggage X-ray Screening Scanner with High Resolution For Banks
Baggage X-ray Screening Scanner with High Resolution For Banks Baggage X-ray Screening Scanner with High Resolution For Banks

Large Image :  Baggage X-ray Screening Scanner with High Resolution For Banks

Product Details:
Place of Origin: Shenzhen,China
Brand Name: SECU SCAN
Certification: CE,ISO
Model Number: AT5636
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wooden Stand
Delivery Time: 15 days
Payment Terms: T/T bank transfer, western union, L/C
Supply Ability: 50 sets per month
Pass rate:: 720 bags per hour
Detailed Product Description
Software: Multi Language And Friendly Images: High Clear
Alarm: Sound And Visible TIP: SUPPORT
Penetration: 32mm Steel Wire Resolution: 38AWG
Extension Roller: Opetional X Ray Generator: Using Life About 6-7years
High Light:

airport screening machines

,

security screening equipment



Baggage X-ray Screening Scanner with High Resolution For Banks







X-ray Baggage Scanner Model:AT5636





Quick detail:



General Specification



 Tunnel Size:   560(W)*360(H)mm
 Conveyor Speed:  0.22m/s
 Conveyor Max Load:  170kg
 Wire Resolution:   32AWG to40AWG
Spatial resolution:   horizontal:1.3 or 1.0mm,
  vertical: 1.3 or 1.0mm
 Penetration:  34 to 40mm Steel
 Film Safety:  Guarantee ISO1600 Film
 X-ray Leakage:  <1 μSv/h (at a distance of 5cm
from external housing)
 Pass rate:  720 bags per hour





X-ray Generator



 Beam direction:   Diagonal
 Generate angle:   80 degree
 Anode Voltage:  140Kv or (100Kv to 160Kv adjustable)
 Anode power:  0.4 to 0.5mA
 Cooling / Duty Cycle:  Oil Cooling /100%







Installation Data



 Operation temperature/Humidity:  0℃-45℃/20%-95%(non-condensing)
 Storage Temperature/Humidity:  -20℃-60℃/20%-95%(non-condensing)
 Operation Power:   220VAC (±10%)50±3Hz
 Power Consumption:  1.0 KW(max), 0.3KW(working)
 Noise:   <65db







Image System



 X-ray Sensor:   L-Shaped Photodiode Array(multi-energetic) , 12bit Deep
 Monitor:  High Resolution Color, LCD Accord, 17 inch
(19 inch optional)
 Image Processing:  Edge enhancement, image
strengthening, image lightening, reducing darkening,
image returning, image retrieval.
 Image Grey Level:  4096
 Image Processing:  24bit for processing real time
 Image storage:  Storage 100000 pictures in real time
 Zoom:  max 64X zoom Enlarge, Whole screen
continuous observation



X Ray Baggage Scanner



  1 . The AT5636 has a tunnel opening of 560 x 360 mm ideal for the screening of small sized objects.



   2 . Like all X-ray threat detection equipment in the SECUSCAN range, the AT5636 features unique 4 colour imaging enabling operators to view screened objects in 6 colours. 6 colour imaging allows screening operatives to achieve optimal material identification and improve throughput with more effective screening technology.



    3 . It's is known for its reliability, ease of use, versatility across many environments and its effective threat detection.



    4 . The AT5636 is one of the most versatile security threat inspection and detection machines on the market, ideal for use in courts, prisons, hospitals, and airport checkpoints to practically any security screening location.



Advantage:





Assist of detecting organic and inorganic items such
as weapons, explosives and narcotics using different
colour show





Scanning images:

Baggage X-ray Screening Scanner with High Resolution For Banks 0

Muilti-function keyboard

Baggage X-ray Screening Scanner with High Resolution For Banks 1

Different performance and configuration for your optional:





Baggage X-ray Screening Scanner with High Resolution For Banks 2







As a professional and biggest manufacturer of x-ray system in south of China.

Please don't hesitate to send me inquiry to know more detail.
