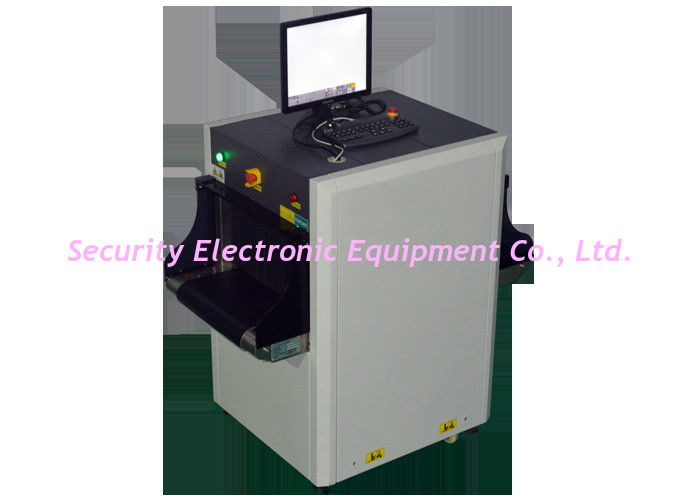

38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC

38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC
38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC 38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC

Large Image :  38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO FCC RoHS
Model Number: SPX-5030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 50 sets/ month
Detailed Product Description
Operation System: Windows 7 Tunnel Size: 504*320mm (w*h)
Max Load: 150kgs Penetration: 10mm Steel Panel
X-ray Generator Anode Voltage: 80kV Port: Shenzhen/Hongkong
Payment Terms: L/C, T/T Application: Security Check
Customized: Yes Alarm Form: Display Or Alarm
Transport Package: Wooden Packing HS Code: 9022191090
High Light:

Steel Panel X Ray Baggage Scanner

,

38AWG X Ray Baggage Scanner

,

220VAC X Ray Baggage Machine

Security Products SecuPlus System X-ray Baggage Scanner Tunnel Size: 50*30cm



Technical parameters



Tunnel size 504*320mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 150kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 10mm steel panel
Monitor 17inch,resolution 1280*1024
X Ray generator anode voltage 80kV
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection <0.16 μSv
Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X32, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Dose per inspection <0.125 μSv
Radiation leakage <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size 1199*728*1197mm (L*W*H)
Weight 280kg
Environment temperature/humidity - 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.6KvA
Noise Level <55db



Application field

  • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
  • Suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.

High Light

  • Black white and Pseudo color display
  • Windows 7 operation system;
  • With independent industrial computer;
  • Professional multi-function operation keyboard;
  • Automatic save scanned image;
  • Reliable performance;
  • Friendly Image processing interface

Technical characteristics

  • Single energy penetration system;
  • New radiation protection technology;
  • TIP program;
  • Clear and distinct image;
  • Scanned imaged can zoom up to 64 times
  • Integrated structure design, refinement appearance
Our Service
Operation training program for end users
Free of factory training for engineer from agents or end user
One year free of spare parts
Life time technical support


Scan Image



38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC 0





Related Products

38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC 1


Standard polywood package:
38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC 2
38AWG Steel Panel X Ray Baggage Scanner 50×30cm Tunnel 220VAC 3
