Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard

Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard
Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard

Large Image :  Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE, ISO
Model Number: SPB-219Y
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden packing
Delivery Time: 5-8 working days
Payment Terms: L/C, T/T
Detailed Product Description
Dia. Of Bollard: 219mm Material: Stainless Steel
Rising Speed: 3s-6s(adjustable) Max Pressure: 70 Ton
Communication Distance: <1200mm Bollard Host Size: L420*W420*H1100mm
High Light:

RS485 Retractable Rising Bollard

,

3.7KW Retractable Rising Bollard

,

3s Stainless Steel Rising Bollard

Stainless Steel Retractable Hydraulic Rising bollard For Break-in Vehicle Control

Model: SPB-219Y





Highlight:

  • Easy installation;
  • Stop unauthorized vehicle intrusion;
  • Effective solution to vehicle attack;
  • Bollards designed for controlling vehicles force entry in sensitive areas.

  • With highest practicability,reliability and safety .

  • Multi- configuration provided for various customer choices.

  • Connected with Road barrier,Intelligent charging system and Time attendance systems.

  • To realize perfect access control management systems.

Specifications:


1 Power
380V three-phase (control voltage 24V)
2 Operating Temperature -25°C~75°C
Waterproof, Dustproof
3 System Power 1.5KW/2.2KW/3.7KW
4 Up&down time 3~6 seconds(can be adjustable)
5 Parts of Bollards 1,Bollards Body
2,Automatical Control Board
6 Dia.of bollards 219mm ±2mm
7 Communication Distance ≤1200mm
8 Thickness size 6mm (can be customized with additional cost)
9 Communication
Connection
RS485
10 Material A3 Carbon Steel&304 steel
11 Color Various color optional
12 Bollard Host Size L420*W420*H1100mm
13 Bollard rising height 600mm ( can be customized with additional cost)
14 Max Pressure 70 ton container
15 Temperature -40ºC~ 60ºC
16 Hydraulic cylinder HOB63-600CA+1(industrial grade)
17 Pump Type Vane Pump
18 Controller Remote control/keyboard
19 Applications                   Subway Station, Hoverport, Tourism Sports,Exhibition,Residence Area


Functions and Features:

---Durable, Overload, Operate Smoothly, Low Noise, Fast speed up&down
---Micro-control technology makes bollards work stable and reliable,Easy integrate to other systems
---Manual control hydraulic system devices
---Swiping card system: built-in card reader to control bollards up&down(optional)
---Road barrier integrate with Bollards : built-in access control realize road barrier,A/C and bollards in one-card(optional)
---Connected with Computer Management OR Charging Systems(optional)

---Compatible with road barrier,Turnstiles and other access system control to achieve automatic control
---Advanced Hydraulic pressure technologies
---Remote control system realize wireless control up&down within 30 meters range
---Customized for different users requests


Application:

Prisons, Military Checkpoints, Boarder, Airports, Seaports, Embassies, Bank, Government buildings, Nuclear power plants, etc



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

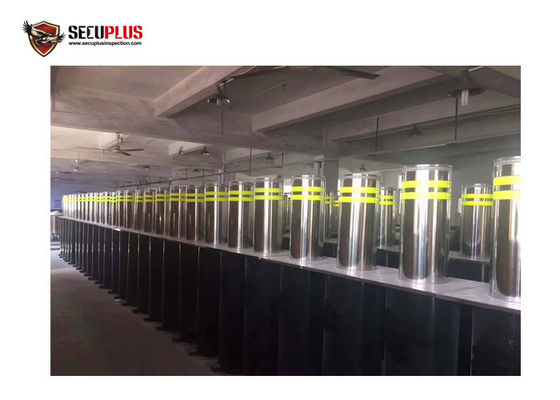

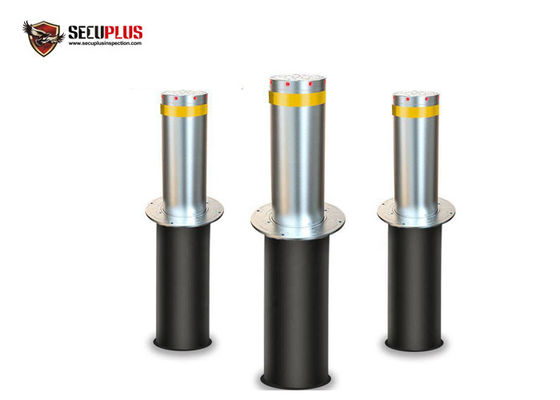

Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard 0

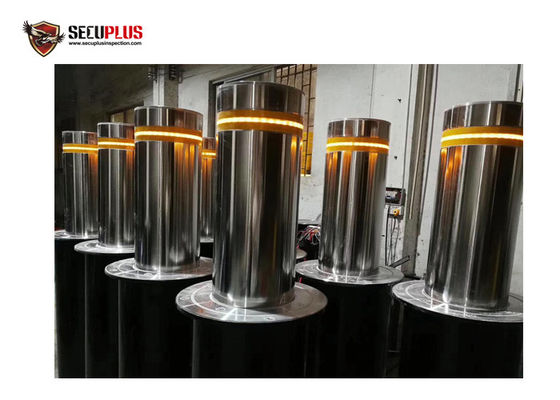

Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard 1

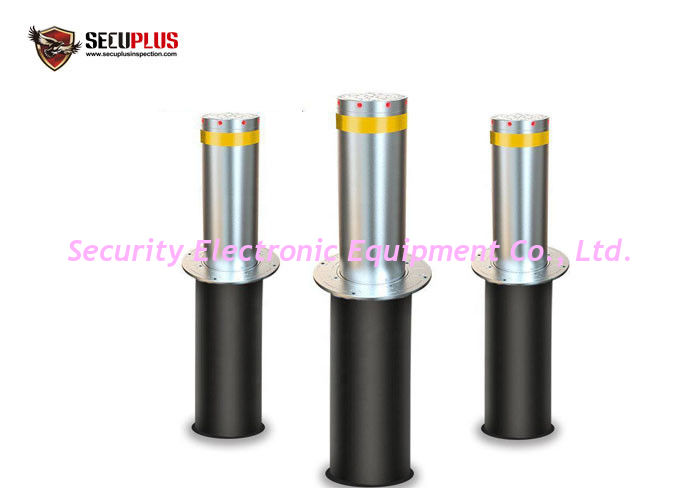

Stainless Steel RS485 3s 3.7KW Retractable Rising Bollard 2
