Product Details:

Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE ROHS FCC ISO
Model Number: SPT650

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1-790 per set
Packaging Details: Carton+ Plywood pallet
Delivery Time: 7 working days after got your payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Function: Digital Display Work, Wireless Remote Control Start And Close Studs Have In Stocks: More Than 10 Sets
Effective Interception Distance: 6-15meters(in Options) Puncture Tire Thickness: ≤35mm
Max Weight Capacity: 20T Remote Control Speed: ≤ 1 Time / Sec

Portable Tire Killer SPT650 Traffic Safety Tyre Killer Road Barrier Gate Tyre Killer



Introduction:

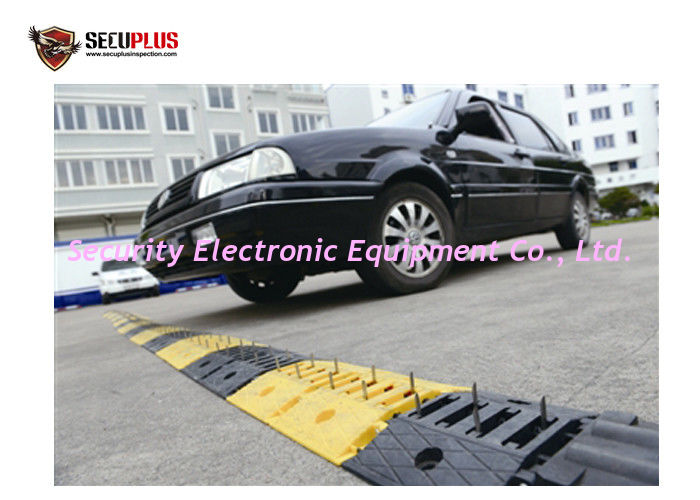

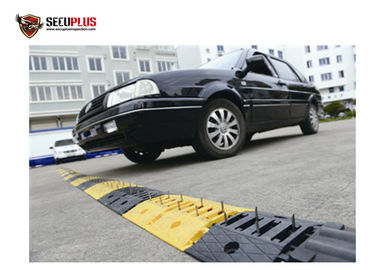

SPT650 Portable deceleration slope type roadblock, also known as tyre killer. It belongs to the electromechanical integrated remote control to intercept the car.

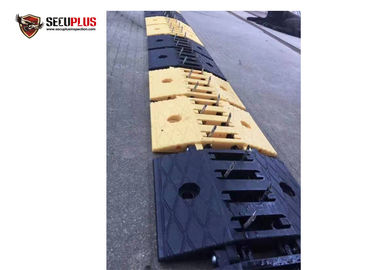

The roadblock uses more than 100 hollow stainless-steel needles to directly pierce the tires of unauthorized vehicles.



The size of the spike barrier collection can be put into the trunk of the trolley. When it is needed, the spike barrier can be opened in the traffic lane.



The user can remote control the spike rising within 200 meters.



To prevent the vehicle can’t continue driving after the tire has been deflated.



The effective length can be produced to 5-16 meters according to the user's requirements.



Technical Specification :



Items Specs
Function Digital display work, wireless remote control start and close studs
Effective Interception Distance 6-15meters(in options)
Puncture Tire Thickness ≤35mm
Max weight capacity 20T
Remote control speed ≤ 1 time / sec
Remote control distance 45meters (Empty zone)
Spike Barrier Weight 16 kgs
Standard Spike Barrier Size 6000(L)*240(W)*30(H)mm
Working Voltage 12V
Venting Hollow Steel Needle Size φ5mm×43mm
Packing box size 630(L)*610(W)*280(H)mm
Gross weight(6m) 34 kgs























Using Instruction:

1. Before using, ensure that the battery in the remote control box is charged for a sufficient time to keep the voltage of the power supply between 11V and 13.5V.
2. Open the right side cover of the roadblock box, roll out the roadblock roll, remove the elastic hook for fixing the roadblock, lean on the side of the roadside, and roll to the road to intercept the vehicle.
3. Connect the wiring between the remote control box and the roadblock. Insert one end of the two-meter three-core connection cable into the roadblock connection jack and the other end into the three-core connection jack of the remote control box.
4. Open the top cover of the remote control box, pull the power switch to the built-in power supply, the power indicator light is on, the device enters the working state, and the left receiving antenna is pulled out to increase the receiving distance.
5. When it is necessary to perform the task of intercepting the suspect vehicle, press the large button on remote control key, and the stainless steel hollow needle in the roadblock is automatically erected. At this time, if the roadblock is forcibly passed, the wheel will be pierced into several stainless steel hollow needles. The tire deflated immediately within two seconds and could not continue driving.
6. After the interception task is finished, press the small button on the remote control key, and the stainless steel hollow needle that is erected will rotate back to the original position and enter the standby state.
7. Recycling of the remote control roadblock, after the roadblock is rounded, fix the roadblock with the elastic hook strap, turn off the remote control box power switch, and put the remote control box into the middle of the roadblock, and hold the roadblock in the left hand, right hand rolling barrier block into the box, put in the connection cable and buckle the cover.
8. The remote control roadblock is also equipped with an external power connection. When the power supply voltage in the remote control box is insufficient and cannot work normally, one end of the 15M connection cable can be inserted into the

external power connection jack of the remote control box, and the other end is inserted into the 12V car point. To the cigarette lighter jack, pull the power switch of the remote control box to the external power supply position, and the operation is the same as the above.

9, work indicator

(1) Power indicator light - When the remote roadblock needs to perform the interception task, turn on the power switch in the remote control box, and the power indicator light is on.

(2) Undervoltage indicator light——When the undervoltage of the power supply in the remote control box is lower than 11V, the undervoltage indicator light is on, and it needs to be charged at this time. The charging indicator lights up when charging, and the charging time is 8-12 hours.

(3) When the red work light remote control stop road barrier is in the working state of interception, the two red indications above the remote control box are on, the interception task ends, the power is turned off, and the indicator light stops working.
