32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution

China 32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution supplier
32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution supplier 32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution supplier 32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution supplier 32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution supplier 32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution supplier

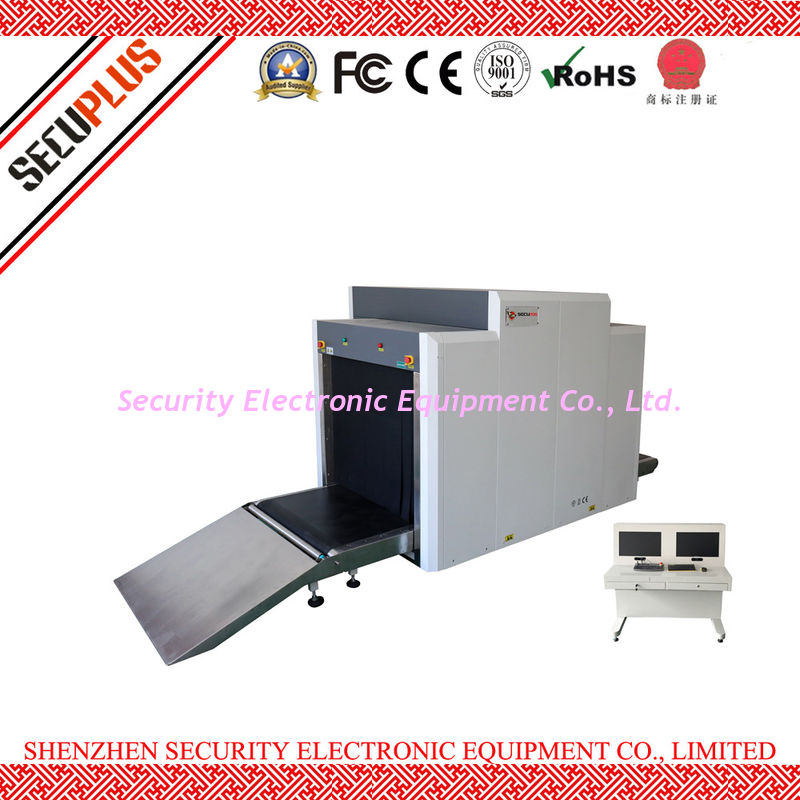

Large Image :  32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution

Product Details:

Place of Origin: China
Brand Name: SECU PLUS
Certification: CE, ISO
Model Number: SPX-100100

Payment & Shipping Terms:

Minimum Order Quantity: 1
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 500 sets/month
Contact Now
Detailed Product Description
Tube Voltage: 160kv, Operating At 150kv Conveyor Max Weight: 200kg
Tunnel Size: 1000(W)*1000(H)mm Penetration: 32mm Steel
Software Language: Support English, Turkish, Russian, Persian, Arabic Training: Free Of Cost At The Factory
Wire Resolution: 40AWG Warranty: One Year

Security Inspection X Ray Baggage Screening Equipment 1000 *1000cm Scanner

Model: SPX-100100DV



Product highlights:



  1. Intelligent software and powerful image process function
  2. Two x ray generators, dual views
  3. 21.5inch dual monitors
  4. Accurate Z7,Z8,Z9 mark for explosive and narcotics
  5. Windows 7 operation system
  6. Friendly operation System
  7. Reliable performance
  8. Professional keyboard and wireless keyboard and mouse



Specification





Tunnel Size                                    1000(W)*1000(H)mm
Conveyor Speed 0.22m/s
Conveyor Max Load <200kg
Dose per Inspection <4.8 uGy
Wire Resolution 40AWG
Penetration 32mm, two x ray generators
Spatial Resolution Level Dia1.0mm
Vertical esolution Level: Dia1.0mm
Vertical: Dial1.0mm
Penetrate resolution 32mm
Film Safety Guarantee ISO1600 Film
X-ray Leakage <0.5 μ Gy/h (at a distance of 5cm From external housing)



X Ray Generator:



Beam direction downward, side
Beam angle 80 degree
Anode voltage 160kv, operating at 150kv
Anode power 0.5mA
Cooling / Duty Cycle Oil Cooling /100%





X Ray Image:



X-ray Sensor L-Shaped Photodiode Array (multi-energetic), 12bit Deep
Monitor High Resolution Color, LCD Accord, 17 inch
Image Processing Edge enhancement, image strengthening, image lightening, , reducing darkening, image returning, image retrieval.
Image Grey Level 4096
Image Max Resolution 1024 * 1280 pixel
Image Processing 24bit for processing real time
Image storage Storage 60000 pictures in real time
Zoom 16,32,64 Times Enlarge, Whole screen continuous observation
Multi-energetic distinguish objects Organic objects in orange, inorganic objects in blue, mixture in green
High-energy/low energy Switch from high energy to low energy
Adavantage Assist to detect drug and explosive powder





Packing and Shipment:





Packing details

carton packing

1 set/ctn

Packing Size: (L)2940*(W)*2180*2160*(H)

(L)1120*(W)900*(H)1410mm

Gross Weight:1200kg

Payment terms

T/T, Western Union, Cash,L/C

Shipping methods

By air   (5-7days, most expensive)

By express (3-7days, more expensive)

By sea    (25-40days, cheapest)







Installation Data:



  1. Operation temperature/Humidity: 0º C-45º C/20%-95%(non-condensing)
  2. Storage Temperature/Humidity: -20º C-60º C/20%-95%(non-condensing)
  3. Operation Power: 220VAC(± 10%)50± 3Hz
  4. Power Consumption: 1.5 KW (max), 0.7KW(working)
  5. Noise: <58dB.



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.



32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution

32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution

32mm Steel Penetration X Ray Baggage Screening Equipment 40AWG Wire Resolution
