Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation

China Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation supplier
Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation supplier Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation supplier Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation supplier Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation supplier

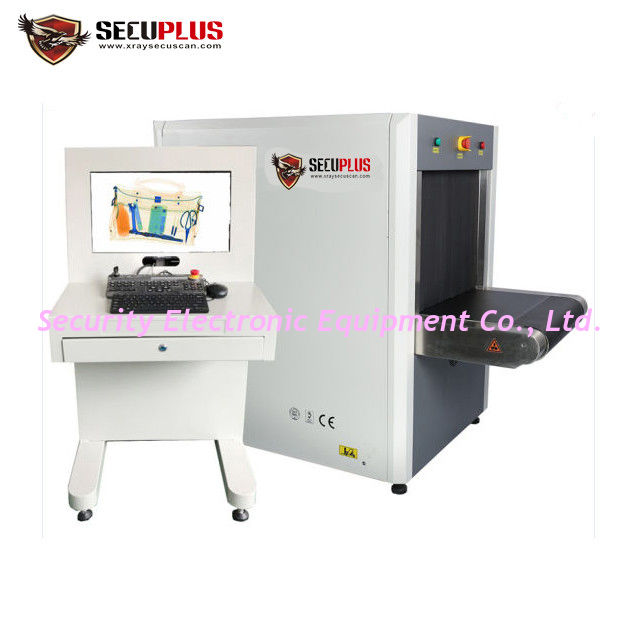

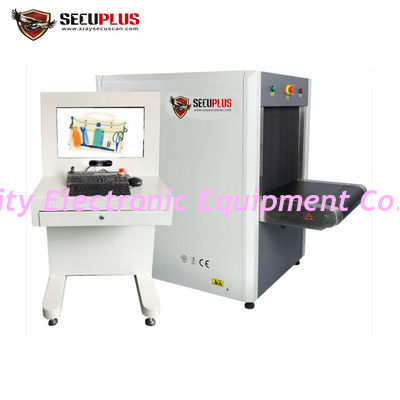

Large Image :  Unique Win 7 Security Hand Airport Baggage Scanning Equipment Remote Workstation

Product Details:

Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: US. FDA, CE, ISO9001, India-AERB
Model Number: SPX-6550

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 1000~20,000 per unit
Packaging Details: wooden box
Delivery Time: 7 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Contact Now
Detailed Product Description
Tunnel Size: 650 * 500 Mm Belt Load: 170kg
Belt Speed: 0.2 M/s Image: Color
Computer System: Windows 7 Software: Multi-language Support
Remote: Remote Workstation Display: 17'' Monitor
Storage: 500GB Multi-energy: Identify Organic And Non-organic Objects

Unique Win 7 security hand luggage & hold baggage scanners x ray introscope to check explosives in airport, stadium

   SPX-6550  X ray baggage scanner is a perfect solution to automaticly check weapons, explosives, drugs, gun, etc in luggages, like airport, seaport, subway, metra, checkpoint, police, court, government building, gms, etc.

Besides our factory produce different size of X ray baggage scanner to satisfy various customers:

High Light of x ray machine:

  • Accurate Z7,Z8,Z9 mark for explosive and narcotic
  • Partly zoom up to 3 times;
  • 13 kinds of image processing functions and 6 kinds of pseudo color;

  • Black white and color display
  • Windows 7 operation system;
  • with independent industrial computer;
  • Professional multi-function operation keyboard;
  • automatic save scanned image;
  • Reliable performance;
  • Friendly Image processing interface
  • Technical characteristics
  • dual energy penetration system;
  • new radiation protection technology;
  • TIP program;
  • Clear and distinct image;
  • Scanned imaged can zoom up to 32 times
  • Integrated structure design, refinement appearance

Technical data:


Tunnel size 650*500mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 170kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 38mm steel panel
Monitor 17inch,resolution 1280*1024
X Ray generator anode voltage 100KV
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection <0.16 μSv
Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to 32X, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100,000 image
Radiation leakage <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F programmable key,high density alarm,TIP;date/time display,baggage Count,User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size

2043*901*1384mm (L*W*H)

Weight 500kg
Environment temperature/humidity - 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.6KvA
Noise Level <55db




We have successful cases in airports,customs and government, important events for protection.
The reliable military supplier of security screening system.
