Product Details:
Payment & Shipping Terms:
|
| Tunnel Size(mm): | 600(L)*400(W) | Penetration: | 38 Mm Steel |
|---|---|---|---|
| Warranty: | 12 Months | In Stocks: | About 20 Units |
| Packing: | Plywood Pallet | Service: | 24 Hours Online |
| Other Size: | 5030/6550/8065/10080/100100/150180 | X-ray Generator: | 140KV/160KV |
| High Light: | airport security baggage scanners,security body scanner |
||

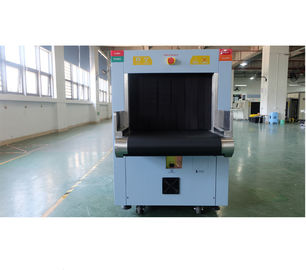

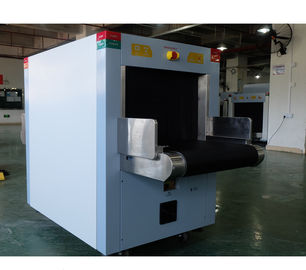

Airport X ray Security Scanner with CE FCC ROHS in huge stocks with high performance
|
SPECIFICATIONS
|
|||
|
Physical
Specification
|
Unit weight (kgs)
|
512
|
|
|
Unit size (mm)
|
2194.7(L)*902(W)*1362.5(H)
|
||
|
Gross weight (kgs)
|
700
|
||
|
General Specification
|
Penetration
|
Typical 38mm, guarantee 34mm
|
|
|
X ray leakage
|
Typical 1.0 μGy/h, guarantee 1.5 μGy/h
|
||
|
Wire Resolution
|
Typical AWG40, guarantee AWG38
|
||
|
X-ray Generator (single)
|
Anode Voltage
|
160 KV
|
|
|
Anode power
|
0.5mA
|
||
|
Generate angle
|
80 degree upward
|
||
|
General Specifications
|
|||
|
Tunnel size(mm)
|
600(L)*400(W)
|
||
|
Conveyor Speed(m/s)
|
0.22
|
||
|
Conveyor height(mm)
|
690
|
||
|
Conveyor Max Load(kgs)
|
170
|
||
|
X ray dose per each inspection
|
1.5 μGy
|
||
|
X ray leakage
|
<0.25 μGy / h
|
||
|
Penetration
|
38mm steel
|
||
|
Wire Resolution
|
dia 0.0787mm copper wire (AWG40)
|
||
|
Penetration Resolution
|
dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm
|
||
|
Spatial resolution:
|
Horizontal:dia1.0mm,Vertical: dia1.0mm
|
||
|
Power Consumption
|
max. 1KW
|
||
Main Features:
Details Images:
Related products
Company Workshop
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
