Product Details:

Place of Origin: CHINA
Brand Name: SECUPLUS
Certification: CE, ISO9001, FCC,ROHS
Model Number: SPV-2900

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: USD 10000~25,000 per unit
Packaging Details: wooden box
Delivery Time: 30 days
Payment Terms: L/C, T/T, Western Union, D/P, D/A
Contact Now
Detailed Product Description
Floor Space:: 4.712 (L)*4.882 (W) M Scanning Tunnel Size: 3.05m(W)*3.7m(H)
Scanning Speed: 720m/h Image: Color
Computer System: Windows XP Or 7 Software: Multi-language
Penetration: Typical 40mm(200kv) Typical Throughout :: 80 Vehicles Per Hour
Storage: 500GB Multi-energy: Identify Organic And Non-organic Objects

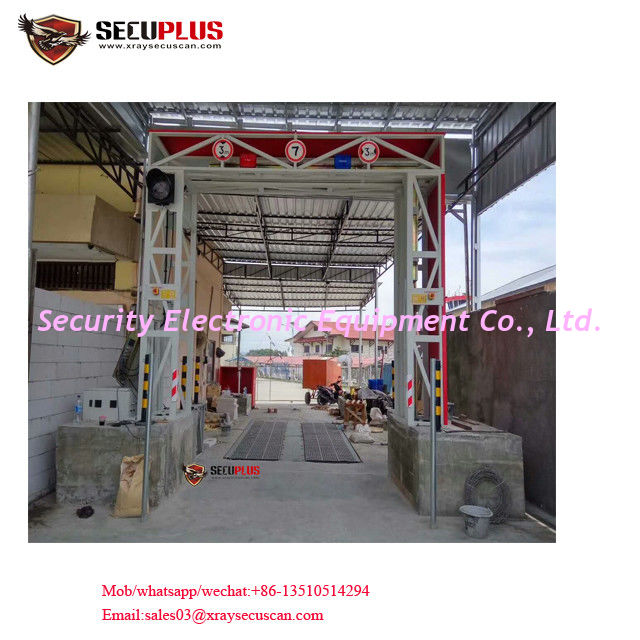

drive through Gantry X Ray Vehicle truck Inspection System container scanner security system in seaport

     SECU PLUS X ray vehicle inspection system is designed to inspect the inside of vehicles. It can quickly and accurately identify threats/ contraband/ weapons hidden in the vehicle. SPV-2900 greatly improved vehicle safety inspection speed and accuracy, reduce investment in human resources.

SPV-2900 use advanced high energy, low radiation X-ray scanning technology, can quickly determine whether the vehicle is equipped with dangerous goods and contraband such as weapons, explosives, drugs, smuggled goods. The driver drive the vehicle directly pass through the system , the whole process will real time display on the monitor. This system suitable for small and medium-sized Saloon Car, cargo vehicle, truck for rapid and through inspection, meanwhile maximally guarantee the safety of the personnel.


SPV-2900 can be installed in the parking lot entrance, checkpoints, customs, border, important government agencies,large venues, high security premises for vehicle safety inspection. According to the customer requirements, on-site installation conditions, this system also can be integrated with the under vehicle inspection system to realize the comprehensive multi-angle vehicle safety inspection.



KEY FEATURES:

* High penetration
The SPV-2900 is with 200kv generator producing X-Ray from top to bottom, offering high-quality X-ray images of inspected objects through 40 mm of steel at car speeds of 720m/h.

* High quality X-ray images
To ensure proper detectability of the concealed objects, the AT2900 produces images with the 2% of the contrast sensitivity and 0.8mm copper wire detection capability.

* Dual energy imaging
The SPV-2900 has an automatic color coding for materials separation (3 colors) feature allowing distinguishing between organic, non-organic and metal materials. This feature helps the operator to detect dangerous object from the various materials.

* Radiation safety
The SPV-2900 ensures the low dose for driver and passenger operation (complies with ANSI 43.17 standard) as well as protection of the operator. The inspection portal is equipped with the video surveillance system to avoid the inspection of the passer-by's.


System highlights:

1.  High security protection
Track stretch design enables automatic transmission of vehicles to get scanning, maximally keep the driver and personnel away from radiation.

2.  High pass rate, can achieve 100% inspection
3. High penetration, no image distortion
4. Large scanning channel, suitable for checking a variety of small and medium-sized vehicles.
Powerful image processing function, such as zoom in, zoom out, pseudo-color transform, edge enhancement, contrast adjustment, multi-image comparison, and image format conversion, so that the operator can easily and quickly identify the contrabands and dangerous items inside of the vehicles, mark the suspected parts on the image.

5.  Friendly interface, can integrated with LPRS and under vehicle inspection system (option).

Basic specs:

1. Floor space: 4.712 (L)*4.882 (W) m
2. Scanning tunnel size: 3.05m(W)*3.7m(H)
3. Scanning speed:720m/h
4. Typical throughout : 80 vehicles per hour
5. Penetration: typical 40mm(200kv)
6. Wire resolution: 0.8mm
7. Maximum vehicle length: 20m
8. Vehicle Type For Screening: Saloon Car
9. Type of X-ray Source: X-Ray Generator



Radiation safety:

X ray dose per inspection: <3.5μSv, speed below 7km/h
X ray leakage: <1.5μSv, complied with international IAEA standard
Film safety: ISO1600

X ray generator:
X ray beam direction: From side
X ray generator: 200kv
Cooling / Duty Cycle: Oil Cooling /100%

System function:
Image process: Image enhancement; magnifying; brightening / darkening; image pullback / front pull; image storage
Others: Date / time display; vehicle count; user management; system working time; ray out timing; power-on self-test; image storage and retrieval; maintenance diagnosis
Image Acquisition Mode: Real-time, Synchronized

Operating environment:
Operation temperature/Humidity: 0℃-45℃/5%-95%(non-condensing)
Storage Temperature/Humidity: -40℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(±10%) 50/60Hz
Power consumption: Max. 2KVA
