Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 1000mm*1000mm | Conveyor Max Load: | 200KG |
|---|---|---|---|
| Service: | Free Training In Factory, Technic Support Online | Wire Resolution: | 40AWG |
| Penetration: | 38 Mm Steel Guarantee, 40mm Steel Typical | Service Team: | Professionally |
| High Light: | cargo inspection,baggage x ray machine |
||

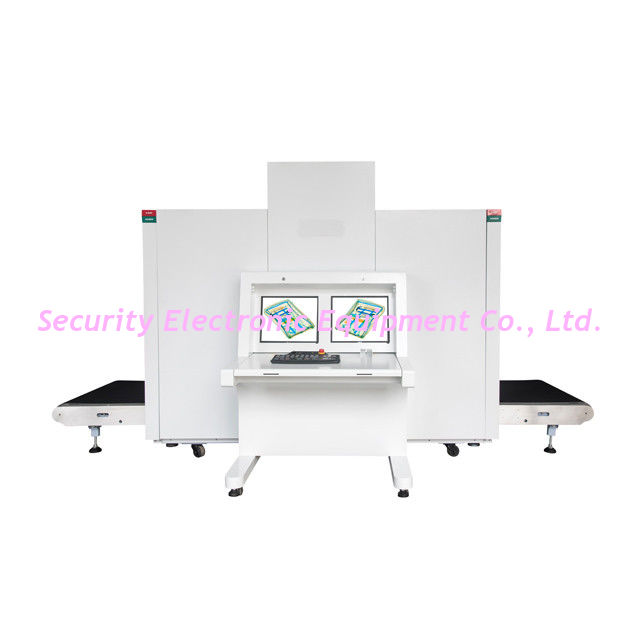

Airport X Ray Baggage and Parcel Inspection Scanner SPX100100B in huge stocks
General Specification
|
Tunnel Size: |
1000(W)*800H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
200kgs |
|
Wire Resolution: |
32AWG to 38 AWG |
|
Spatial resolution: |
horizontal:1.3 or 1.0mm, |
|
Penetration: |
38 to 40 mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<1μGy/h (at a distance of 5cm From external housing) |
| Pass rate: | 720 bags per hour |
|
Beam direction: |
Diagonal |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
140-160Kv adjustable |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
Monitor: High Resolution Color, LCD Philippe, 19inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096 |
|
Image Max Resolution: |
1024 * 1280 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 60000 pictures in real time |
|
Zoom: |
max 16 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
220VAC(±10%)50±3Hz |
|
Power Consumption: |
1.8 KW (max), 0.3KW(working) |
|
Noise: |
<58db |
Image System
| X-ray Sensor | L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
| Image Processing | Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval |
| Image Grey Level | 4096 |
| Image Max Resolution | 1024 * 1280 pixel |
| Image Processing | 24bit for processing real time |
| Image storage | More than 10000 pictures in real time |
| Zoom | 64 times Enlarge, Whole screen continuous observation |
| Multi-energetic distinguish objects |
Organic objects in orange, inorganic objects in blue, mixture in green High-energy/low energy : switch from high energy to low energy |
| Assist to detect explosive powder | |
Applications: Airport, Transport terminals, Buildings, Factories (to find needle in clothing, shoes, bags)Courthouses, Embassies, Military installations, Prisons, Hotels, Schools ,Convention centers, Security checkpoints Special events location
Detailed Product Description:
X-ray Baggage Scanner Factory
More solutions will be provided after receving your inquiry!
