Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX-5030A

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Packaging Details: Plywood Pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/ month
Contact Now
Detailed Product Description
Tunnel Size: 504*320mm (w*h) Penetration: 8-10mm Steel Panel
X Ray Generator Anode Voltage: 80KV Operation System: Windows 7
Monitor: 17inch,resolution 1280*1024 Warranty: One Year

Compact Size Single Energy X Ray Baggage Scanner 5030A With CE Certificate

Model: SPX5030A





High Light

  • 80kv single energy scanner
  • Black white and Pseudo color display

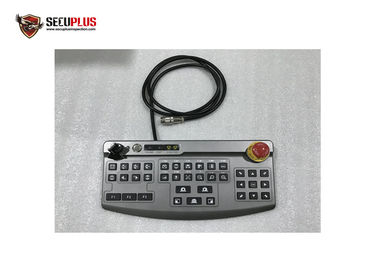

  • Professional multi-function operation keyboard;
  • Automatic save scanned image;
  • ​Friendly Image processing interface
  • Windows 7 operation system;
  • With independent industrial computer;

Technical characteristics



  • New radiation protection technology
  • TIP program
  • Scanned imaged can zoom up to 32 times
  • Integrated structure design, refinement appearance
  • Clear and distinct image



Baisc specification:



X Ray Generator:



X Ray generator anode voltage 80KV
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection <0.16 μSv





Tunnel size 504*320mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 100kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 10mm steel panel

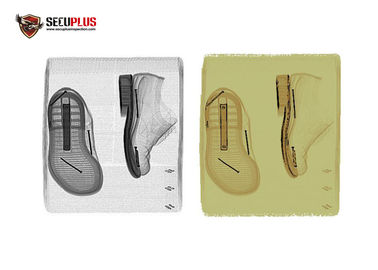

X Ray Image:



Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X32, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Dose per inspection <0.125 μSv
Radiation leakage <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up





Installation environment:



Frame size 1199*728*1197mm (L*W*H)
Weight 280kg
Environment temperature/humidity - 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.6KvA
Noise Level <55db





Application field



  • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
  • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.



Detailed image:

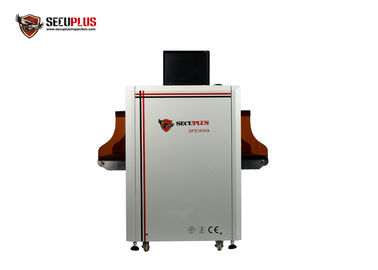

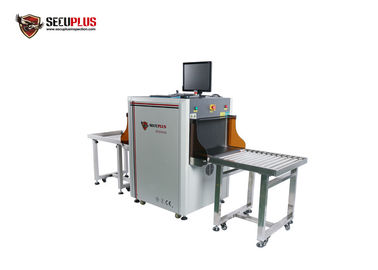

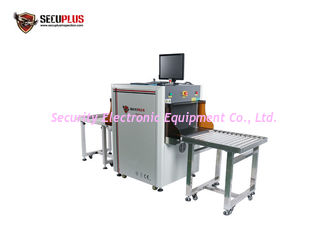

Compact Size Single Energy X Ray Baggage Scanner 5030A With CE Certificate

Compact Size Single Energy X Ray Baggage Scanner 5030A With CE Certificate
