X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner

Good quality Baggage And Parcel Inspection for sales
Good quality Baggage And Parcel Inspection for sales
I'm Online Chat Now

X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner

China X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner supplier
X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner supplier X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner supplier X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner supplier X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner supplier X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner supplier

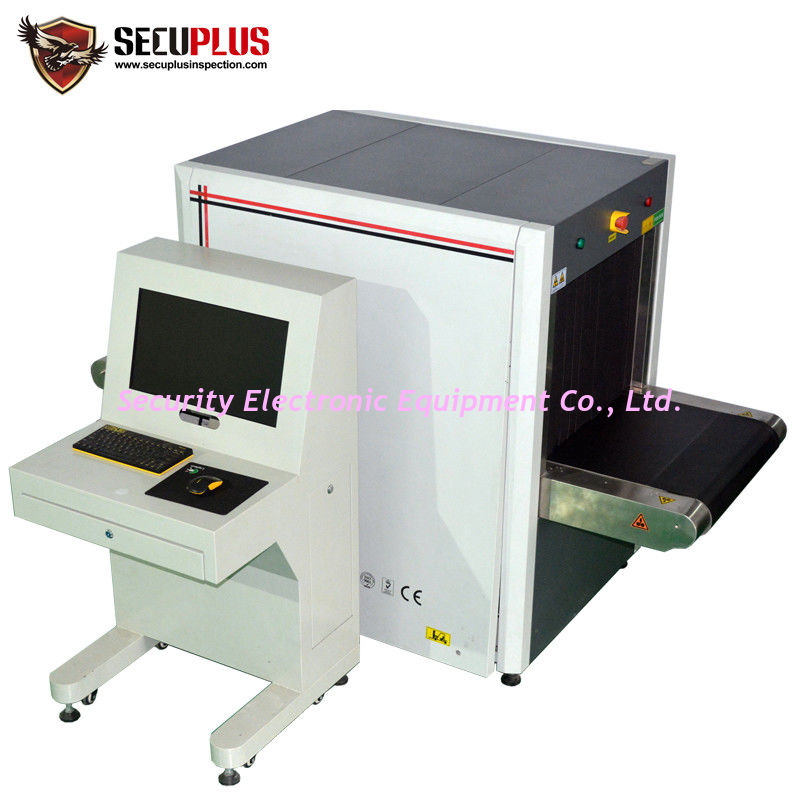

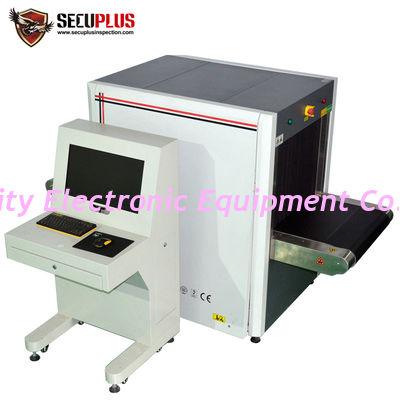

Large Image :  X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner

Product Details:

Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX-6550

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 1-12000 set
Packaging Details: Plywood Pallet
Delivery Time: 7 woring days after receving your full payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300sets/moth
Contact Now
Detailed Product Description
Zoom: Up To X64, Support Continuous Magnification Storage Capacity: More Than 100000 Image
Dual-Direction: Yes X Ray Generator: 160KV
Tunnel Size: 653*505mm (w*h) Max Load: 100kgs



X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner



Application field:

  • Train Stations
  • Metro Station
  • Jail House
  • Embassy
  • Boarder check points
  • Entertainment venues
  • Tourist attractions
  • Office buildings
  • Shopping malls
  • Factories, etc;

Suitable for security inspection of briefcase, hand luggage, postal parcels and other small packages.



Technical parameters



Tunnel size 653*505mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 150kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 35mm steel panel
Monitor 21.5 inch,High resolution 1280*1024
X Ray generator anode voltage 160KV (Working at 150KV)
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection < 1.14 USv
Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X64, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Radiation leakage <0.5 USv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F1,F2,F3 programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, bi-direction scan, voltage stabilizer, UPS back up
Frame size 2043*901*1384mm (L*W*H)
Weight 500kg
Environment temperature/humidity - 3℃~+40℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.7KvA
Noise Level <55db





High Light

  1. Powerful image dealing ability
  2. Accurate Z7,Z8,Z9 mark for explosive and narcotics
  3. Windows 7 operation system
  4. Automatic save scanned image
  5. Friendly operation System
  6. Reliable performance

Technical characteristics

  1. Dural energy penetration system
  2. TIP program
  3. Clear and distinct image
  4. Scanned imaged can zoom up to 64 times
  5. Partly zoom up to 3 times
  6. 13 kinds of image processing functions and 6 kinds of pseudo color

Advantages

  1. Multi lanaguages supoort
  2. Windows 7 system
  3. Stable perfoamance
  4. Display the atomic number of the scanned object
  5. Professional after-sales team and can speak english.



X-ray  Scanning Images



X ray Security Scanner SPX-6550 Multi languages X Ray Baggage ScannerX ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner



Operation Keyboard



X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner



Extension Table: 1 set free for customers



X ray Security Scanner SPX-6550 Multi languages X Ray Baggage Scanner
