Product Details:
Payment & Shipping Terms:
|
| Tunnel Size: | 500mm*300mm | Conveyor Max Load: | 150KG |
|---|---|---|---|
| Penetration: | 30-32mm Steel | Film Safety: | Guarantee ISO1600 Film |
| Have In Stock: | More Than 20 Units | OEM: | Accept |
| High Light: | security screening equipment,airport screening machine |
||

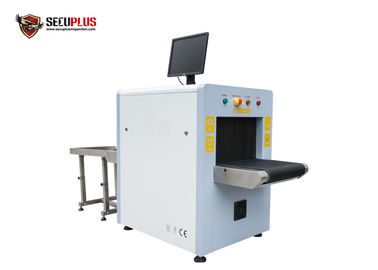

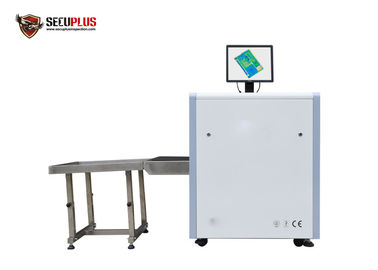

SPX5030C Baggage Screening Equipment X Ray Baggage Scanner for Secueity
General Specification
|
Tunnel Size: |
500(W)*300H)mm |
|
Conveyor Speed: |
0.22m/s |
|
Conveyor Max Load: |
150kgs |
|
Wire Resolution: |
32AWG to 38 AWG |
|
Spatial resolution: |
horizontal:1.3 or 1.0mm, |
|
Penetration: |
27-32mm Steel |
|
Film Safety: |
Guarantee ISO1600 Film |
|
X-ray Leakage: |
<1μGy/h (at a distance of 5cm From external housing) |
| Pass rate: | 720 bags per hour |
|
Beam direction: |
Diagonal |
|
Generate angle: |
80 degree |
|
Anode Voltage: |
140Kv |
|
Anode power: |
0.4 to 1.2mA |
|
Cooling / Duty Cycle: |
Oil Cooling /100% |
|
X-ray Sensor: |
L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
|
Monitor: |
High Resolution LCD Accord, 17 inch |
|
Image Processing: |
Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
|
Image Grey Level: |
4096 |
|
Image Max Resolution: |
1024 * 768 pixel |
|
Image Processing: |
24bit for processing real time |
|
Image storage: |
Storage 100000 pictures in real time |
|
Zoom: |
64 Times Enlarge, Whole screen continuous observation |
|
Operation temperature/Humidity: |
0℃-45℃/20%-95%(non-condensing) |
|
Storage Temperature/Humidity: |
-20℃-60℃/20%-95%(non-condensing) |
|
Operation Power: |
220VAC(±10%)50±3Hz |
|
Power Consumption: |
1 KW (max) |
|
Noise: |
<60db |
Application:
SECUPLUS X Ray Baggage Scanner offers another way to see inside of handbags,briefcases. It popular accepted as a nonintrusively optimize security measure .
AT5030A give you innovative and costeffective solutions. It¡s a great help to exclude the threats and contraband.
01. railway station
02. Transport terminals,
03. Buildings,
04. Factories (to find needle in clothing, shoes, bags),
05. Courthouses,
06. Embassies,
07. Military installations,
08. Prisons,
09. Hotels,
10. Schools ,
11. Convention centers,
12. Security checkpoints
13. Special events location
