Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators

China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
China SHENZHEN SECURITY ELECTRONIC EQUIPMENT CO., LIMITED certification
I'm Online Chat Now

Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators

Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators
Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators

Large Image :  Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators

Product Details:
Place of Origin: China
Brand Name: SECUPLUS
Certification: CE ISO
Model Number: SPX6550DV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/ month
Detailed Product Description
Tunnel Size: 650*500mm (w*h) Max Load: 170kgs
Penetration: 35mm Steel Panel Monitor: 21.5inch,resolution 1280*1024
X Ray Generator Anode Voltage: 160KV Operation System: Windows 7
High Light:

x-ray baggage inspection system

,

baggage x ray machine

Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators

Model: SPX6550DV





High Light

  • Powerful image dealing ability;
  • Accurate Z7,Z8,Z9 mark for explosive and narcotics;
  • Windows 7 operation system;
  • Automatic save scanned image;
  • Friendly operation System;
  • Reliable performance.



Technical characteristics



  • Multi-energy, dual x ray generator, dual view technology to improve the security efficiency;
  • Clear image, high penetration and resolution;
  • Superb material classification,automatically alert drug, explosives
  • Equipped with a professional industrial computer, integrated network and USB port, can automatically store and output test results
  • New X ray protection technology
  • TIP function
  • Support JPG, BMP special image format conversion, dump



Baisc specification:



Tunnel size 653*505mm (w*h)
Conveyor speed 0.20m/s
Conveyor height 693mm
Max Load 170kgs
Wire Resolution 38AWG
Spatial resolution vertical:diameter 1.0mm,horizontal:diameter 1.0mm
Penetration 35mm steel panel
Conveyor height 700mm





X Ray Generator:



X Ray generator anode voltage 160KV
Cooling/operation cycle Oil Cooling /100%
X ray Dose per inspection <1.14 μSv





X Ray Image:



Image processing Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image
Zoom Variable zoom up to X32, support continuous magnification.
Image Checking Continuous check back image
Storage capacity Can store more than 100000 image
Dose per inspection <1.0 μSv
Radiation leakage <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements.
Film safety In accordance with ASA/ISO1600 film safe standard
System function F programmable key,high density alarm,TIP;date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training.
Optional function Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up





Installation environment:



Frame size 2043*901*1384mm (L*W*H)
Weight 500kg
Environment temperature/humidity - 3℃~+40℃±2℃ / 5%~95%(non-condensing)
Storage temperature/humidity -43℃~+60℃±2℃ / 5%~95%(non-condensing)
Power 220VAC (+/-10%) 50+/-3HZ
Consumption 0.7KvA
Noise Level <55db





Application field



  • Entertainment venues, tourist attractions, office buildings, shopping malls, factories, etc;
  • suitable for security inspection of briefcase, hand luggage, postal parcels and other small package.



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

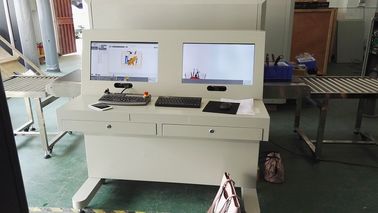

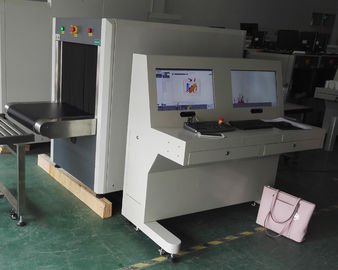

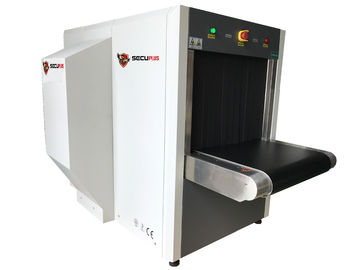

Detailed image:



Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators 0Airport Use Dual View Baggage And Parcel Inspection Scanner With Two Generators 1
