Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move

Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move
Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move

Large Image :  Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move

Product Details:
Place of Origin: China
Brand Name: SECU PLUS
Certification: CE ISO
Model Number: SPX6046P
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Pallet
Delivery Time: 7 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300 sets/ month
Detailed Product Description
X Ray Generator Anode Voltage: 120KV X Ray Source Current: 1mA
Battery: Lithium Ion Battery (Supports 500 Image Captures) Imaging Array: 1280*960 Resolution
Effective Imaging Area: 600(w)*460(h)mm Sensor Type: Industrial CCD Camera
Penetration: 30mm Steel/140mm Aluminum
High Light:

airport screening machines

,

airport baggage scanner

Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move



Usage:



  • Integrated industrial CCD camera
  • Advanced digital display system.
  • Clear image and compact and lightweight design.
  • Using high-resolution digital imaging technology
  • Applicable to security inspection, criminal investigation, smuggling and factory product quality testing.



Baisc specification:





Wire resolution 40AWG (dia 0.787mm copper)
Penetration 30mm steel/140mm aluminum
Image station 1920*1080 resolution, support multi-touch. Lenovo Flex3-14, touch screen 14.0 inches, HD LED 1366*768 resolution, 360 degree flip, portable PC flat two in A; Windows 8 operating system; Intel Core i5-6200u 4GB memory; 500GB hard drive; NVIDIA Geforce 920M graphics card, weight 1.85kg, thin 19.5mm, black.
Sensor type Industrial CCD camera
Imaging array 1280*960 resolution
Effective imaging area 600(w)*460(h)mm
data communication Wired transmission
Image acquisition time 6s
X ray tube voltage 120kv
X ray source current 1mA
Image processing Edge enhancement, super penetration, local enhancement, anti-color display, black and white display, pseudo-color display, suspicious explosives highlighted, suspicious drugs highlighted.
Area selection and enlargement Unlimited continuous magnification
Storage capacity At least 10000 images
Image list 100 History Pictures List
Material classification Dual Energy color display, organic exclusion, inorganic exclusion.
System function Date / time display, historical image preview, user management, image storage and retrieval, emergency stop operation, device status display.

Outline Dimensions

And Weight

X ray generator: 482*215*178mm (L*W*G), 10kgs
Detection board : 462*366*164mm (L*W*G), 10kgs
Operating temp. -15℃~+50℃
Storage temp. -40℃~+70℃
Battery Rechargeable lithium ion battery (Supports 500 image captures)





Technical advantages:



  • High capacity battery endurance to meet the field operation
  • Security upgrades: provides X-ray delay and safety protection to ensure operator safety
  • Modular design, easy maintenance
  • Clear and vivid scanning image
  • Dimensional imaging, accurate display of dangerous goods location and internal structure
  • Dynamically capture images, support playback of dynamic video
  • Scanning images are clear, the resolution is high and the imaging speed is fast. Use CCD industrial camera;
  • High capacity battery life, meet the field operations
  • Rich image processing functions: Support arbitrary selection, continuous amplification, multi-touch gestures to help security personnel faster and more accurate identification of dangerous goods



Our service:



  1. Operation training program for end users
  2. Free of factory training for engineer from agents to end user
  3. Provide on-site trainning when customer requires
  4. If quality problems happen in guarantee period, our company will maintain for free.
  5. One year free spare parts and life time technical support
  6. After-sales service isn't restricted by time and we will assign technical personnel to solve your problems immediately after receiving telephone and hear feedback idea of users and deal with them in time.
  7. If you are caught in some problems when using our products, welcome to contact us at any time.

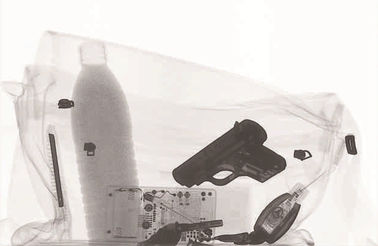

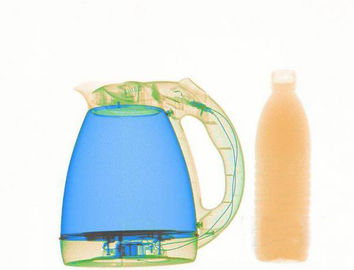

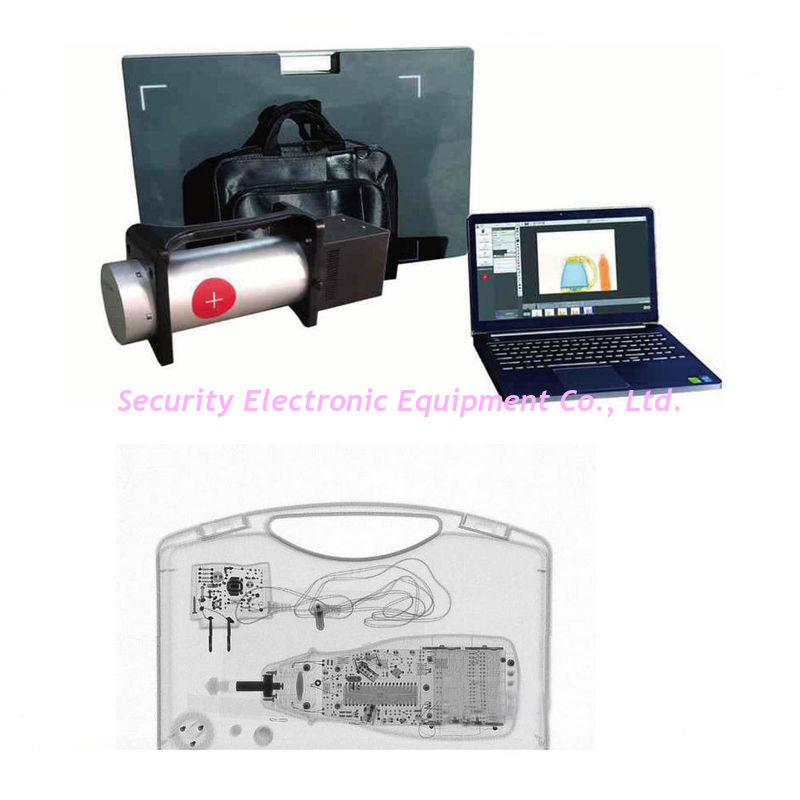

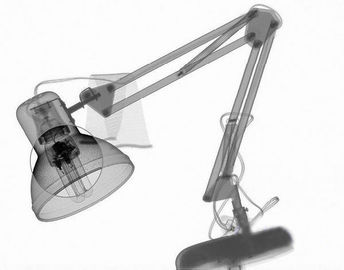

Scanning image:



Portable Dual Energy 120kv X Ray Baggage Scanner Easy to Move 0
