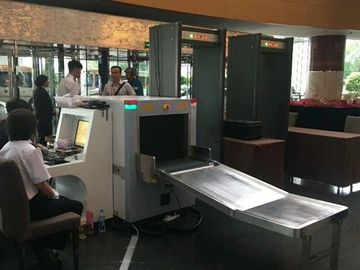

Conventional Xray Baggage Scanner To Check Luggage Weapons In National Games

Conventional Xray Baggage Scanner To Check Luggage Weapons In National Games

conventional X-ray units to check luggage weapons in national games

*  Tunnel Size: 6150(W)*418(H)mm

*  Conveyor Speed: 0.22m/s

*  Conveyor Max Load: 170kg

*  Dose per Inspection: <2.9 μGy/h

*  Resolution: <0.101mm Metal Wire

*  Spatial resolution: Level: dia1.0mm, Vertical: dia1.3mm

*  Penetrate resolution: Dia 0.511mm

*  Penetration: 32mm Steel

*  Film Safety: Guarantee ISO1600 Film

*  X-ray Leakage: <0.05 μGy/h (at a distance of 5cm From external housing)

X-ray Generator of x-ray baggage detector

*  Generate direct: Upward

*  Generate angle: 80 degree

*  Anode Voltage: 140Kv

*  Anode power: 0.3mA

*  Cooling / Duty Cycle: Oil Cooling /100%

Image System of x-ray baggage detector

*  X-ray Sensor: L-Shaped Photodiode Array (multi-energetic), 12bit Deep

*  Monitor:  High Resolution Color, LCD Accord, 19 inch, operation desk(optional)

*  Image Processing: Edge enhancement, image strengthening, image lightening,, reducing darkening,    image returning, image retrieval.

*  Image Grey Level: 4096

*  Image Max Resolution: 1024 * 1280pixel

*  Image Processing: 24bit for processing real time

*  Image storage: Storage 60000 pictures in real time

*  Zones & Zoom: 1-32 Image regions,Whole screen continuous observation

*  Multi-energetic distinguish objects: organic objects in orange, inorganic objects in blue, mixture in green

*  Assist to detect drug and explosive powder

*  TIP & operator training program

*  Remote workstation

Installation Data of x-ray baggage detector

Operation temperature/Humidity: 0°C-45°C/20%-95%(non-condensing)

Storage Temperature/Humidity: -20°C-60°C/20%-95%(non-condensing)

Operation Power: 187~240VAC, 50/60Hz

Power Consumption:  1KW(working)

Noise: <55db
