| Tunnel Size: | 504*320mm (w*h) | Conveyor Speed: | 0.20m/s |
|---|---|---|---|
| Max Load: | 100kgs | Penetration: | 10mm Steel Panel |
| Monitor: | 17inch，resolution 1280*1024 | Have In Stock: | Yes |
| X Ray Generator Anode Voltage: | 80KV | Training: | Free Of Cost At The Factory |
| Warranty: | One Year | Operation System: | Windows 7 |
| High Light: | security screening equipment,baggage x ray machine |
||
80Kv x ray generator Security Screening Equipment with tunnel size 50*30cm
High Light
Technical characteristics
Baisc specification:
| Tunnel size | 504*320mm (w*h) |
| Conveyor speed | 0.20m/s |
| Conveyor height | 693mm |
| Max Load | 100kgs |
| Wire Resolution | 38AWG |
| Spatial resolution | vertical:diameter 1.0mm,horizontal:diameter 1.0mm |
| Penetration | 10mm steel panel |
X Ray Generator:
| X Ray generator anode voltage | 80KV |
| Cooling/operation cycle | Oil Cooling /100% |
| X ray Dose per inspection | <0.16 μSv |
X Ray Image:
| Image processing | Pseudo color/black & white image,Negative Image, High Penetration, Super-enhancement, histogram equalization, check back/forward, Automatic save image |
| Zoom | Variable zoom up to X32, support continuous magnification. |
| Image Checking | Continuous check back image |
| Storage capacity | Can store more than 100000 image |
| Dose per inspection | <0.125 μSv |
| Radiation leakage | <0.4 μSv/h(5cm away from fame),in full compliance with all international radiation safety requirements. |
| Film safety | In accordance with ASA/ISO1600 film safe standard |
| System function | F programmable key,high density alarm,TIP；date/time display,baggage Count, User management, System work timing, Radiation timing, self-inspection while power on, save and search image, automatically maintenance and diagnosis system, image recognition training. |
| Optional function | Video surveillance system, LED prompt screen, voltage stabilizer, UPS back up |
Installation environment:
| Frame size | 1199*728*1197mm (L*W*H) |
| Weight | 280kg |
| Environment temperature/humidity | - 3℃～+40℃±2℃ / 5%～95%(non-condensing) |
| Storage temperature/humidity | -43℃～+60℃±2℃ / 5%～95%(non-condensing) |
| Power | 220VAC (+/-10%) 50+/-3HZ |
| Consumption | 0.6KvA |
| Noise Level | <55db |
Application field
Our service:

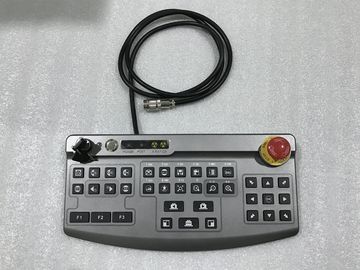

Detailed image:
