Conveyor Max Load 150KG X Ray Security Parcel and handbag Checked

China Conveyor Max Load 150KG X Ray Security Parcel and handbag Checked supplier

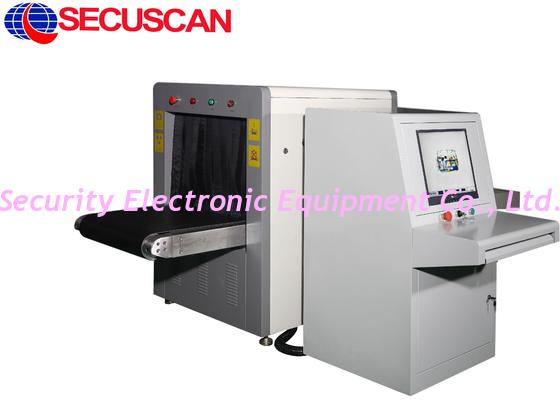

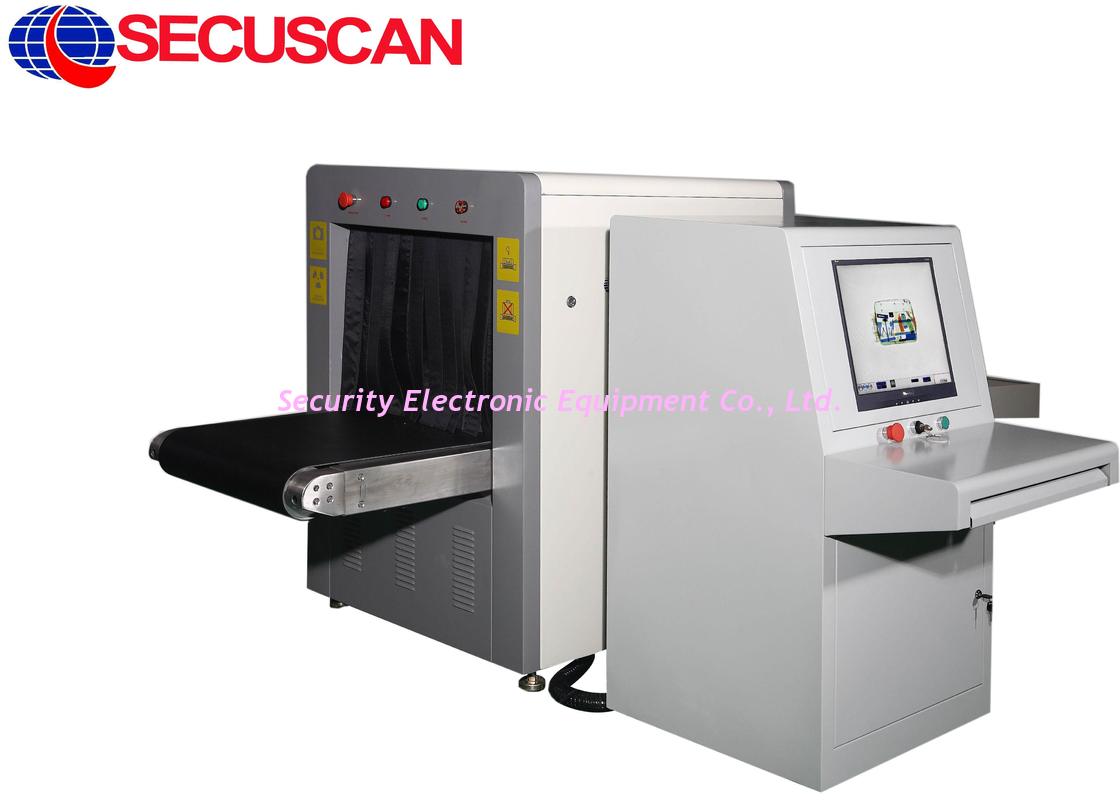

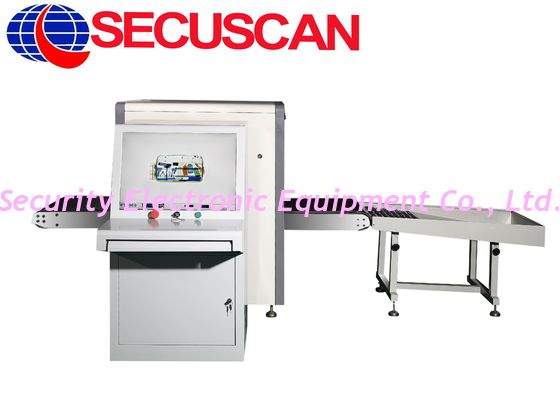

Large Image :  Conveyor Max Load 150KG X Ray Security Parcel and handbag Checked

Product Details:

Place of Origin: China
Brand Name: SECUSCAN
Certification: CE, ISO
Model Number: AT6550

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD+1+20000+set
Packaging Details: Wooden Packing
Delivery Time: One week when there is stock, One month when no stock.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 300 sets/month
Detailed Product Description
Penetration: 32mm Steel Guarantee, 34mm Typical Resolution: 38AWG Guarantee, 40mm Typical
Conveyor Height: 685mm From Ground Tube Current: 0.35mA
Tube Voltage: 140KV Independent Console: 17in LCD Monitor

Conveyor Max Load 150KG X Ray Security Parcel and handbag Checked





Our service:





1.One year free spare parts , life technic support online, remote control the machine for diagnosing



2.We offer considerate tranning program for engineers and operators and guarantee the after sell services



3.Enginners will be sent if there is any problem with the installation and commissioning.



4.We can do OEM for x-ray baggage scanners/ walkthrough detectors/ handheld explosive detectors We can manufactur and sell



Specifications:



Tunnel Size:

650(W)*500(H)mm

Conveyor Speed:

0.22m/s

Conveyor Max Load:

170kgs

Dose per Inspection:

<2.9 μGy/h

Resolution:

<0.101mm Metal Wire

Penetration:

34mm Steel Optional: 38mm steel guarantee

Film Safety:

Guarantee ISO1600 Film

X-ray Leakage:

<0.05 μGy/h (at a distance of 5cm From external housing)

Generate direct:

Upward

Generate angle:

80 degree

Anode Voltage:

100-160Kv

Anode power:

0.4 to 1.2mA

Cooling / Duty Cycle:

Oil Cooling /100%

X-ray Sensor:

L-Shaped Photodiode Array (mono-energetic),  12bit Deep

Monitor:

High Resolution Color,  LCD Accord,  17 inch

Image Processing:

Edge enhancement,  image strengthening,  image lightening,

reducing darkening,  image returning,  image retrieval.

Image Grey Level:

4096

Image Max Resolution:

1024 * 1280 pixel

Image Processing:

24bit for processing real time

Image storage:

Storage 60000 pictures in real time

Zones & Zoom:

1-9 Image regions,  2, 4, 8, 16 Times Enlarge,

Whole screen continuous observation

Operation temperature/Humidity:

0℃-45℃/20%-95%(non-condensing)

Storage Temperature/Humidity:

-20℃-60℃/20%-95%(non-condensing)

Operation Power:

220VAC(±10%)50±3Hz

Power Consumption:

1.1 KW (max),  0.3KW(working)

Noise:

<58db



Applications:

  • Airports,
  • Transport terminals,
  • Buildings,
  • Factories (to find needle in clothing,  shoes,  bags),
  • Courthouses,
  • Embassies,
  • Military installations,
  • Prisons,
  • Hotels,
  • Schools ,
  • Convention centers,
  • Security checkpoints,
  • Special events location



Competitive Advantage:



  • Integrated,  cost Effective,  Turn-Key Security
  • Fit for small Baggage and Parcel Security Inspection.
  • Increased detection capability
  • Friendly interface for ease-of-use
  • Reliable performance and uncompromising value

Shipping and packing:



  1. All of the products will be packed with wooden case and covered by packing film.



  2. Shipping by sea or air for your optional
